Features

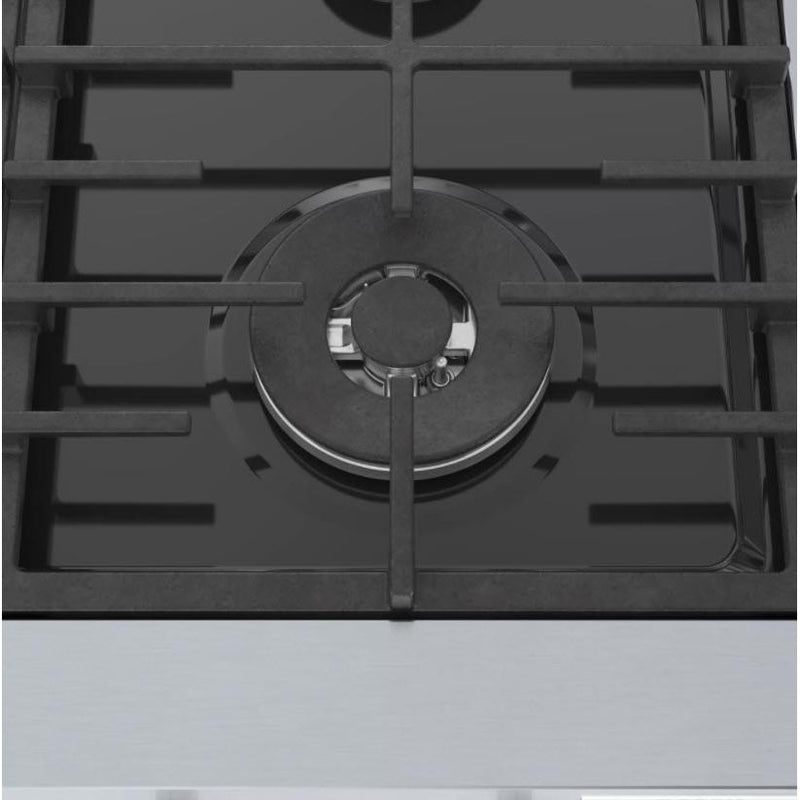

OPTISIM® BURNER

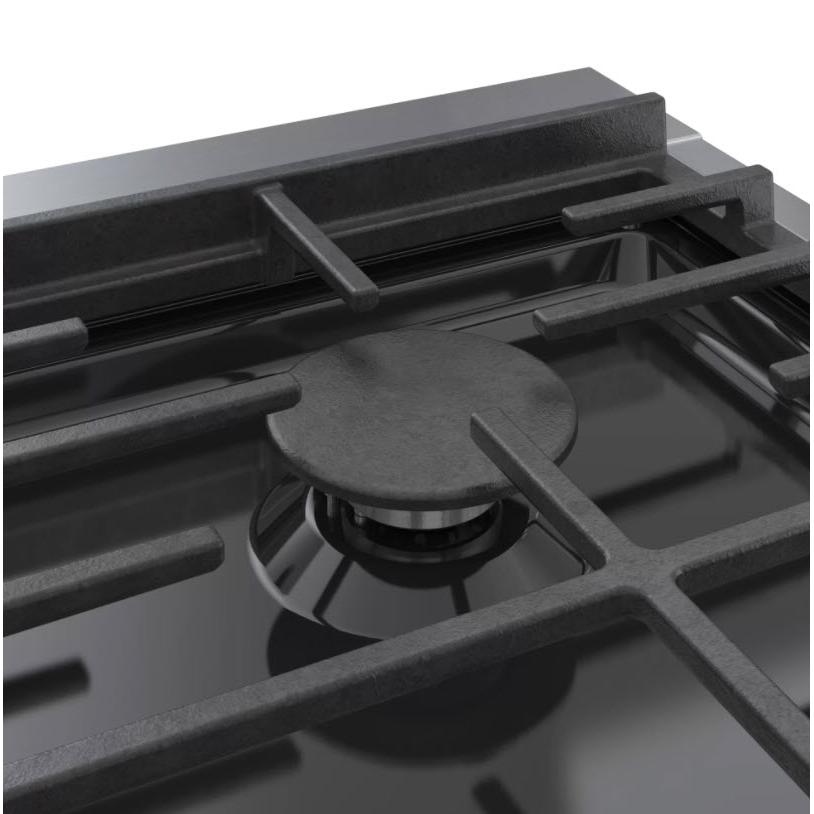

OptiSim® Burner – simmer delicate sauces and melt chocolate without scorching
Specifications
General
Series Name
800 Series
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Rangetop
Cooktop

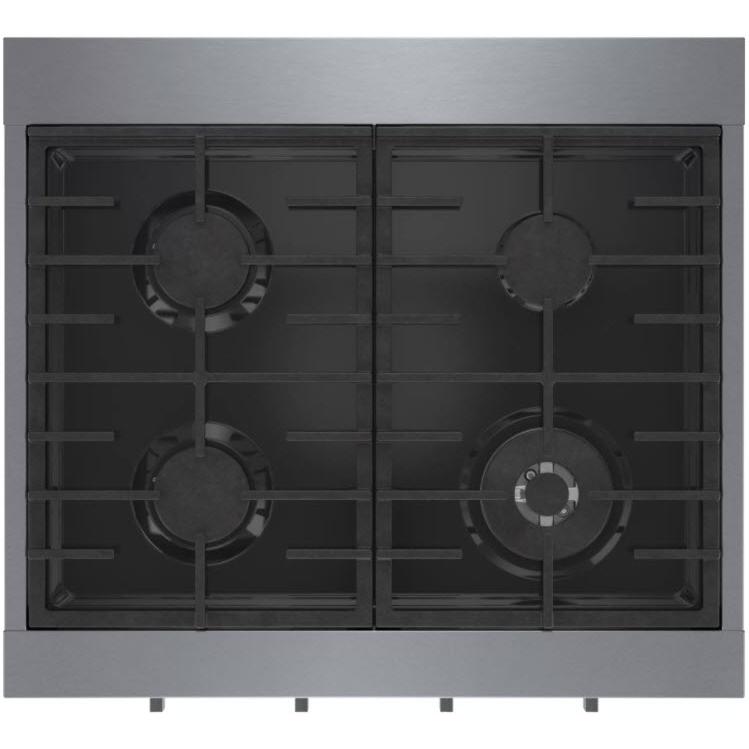

Burners/Elements
4
Power Output
• Total BTU Load (NG / LP): 47,000 / 47,000 BTU
• Power of Front Left Burner (NG / LP): 12,000 / 12,000 BTU
• Power of Back Left Burner (NG / LP): 12,000 / 12,000 BTU
• Power of Back Right Burner (NG / LP) Opti-Sim®: 5,000 / 5,000 BTU

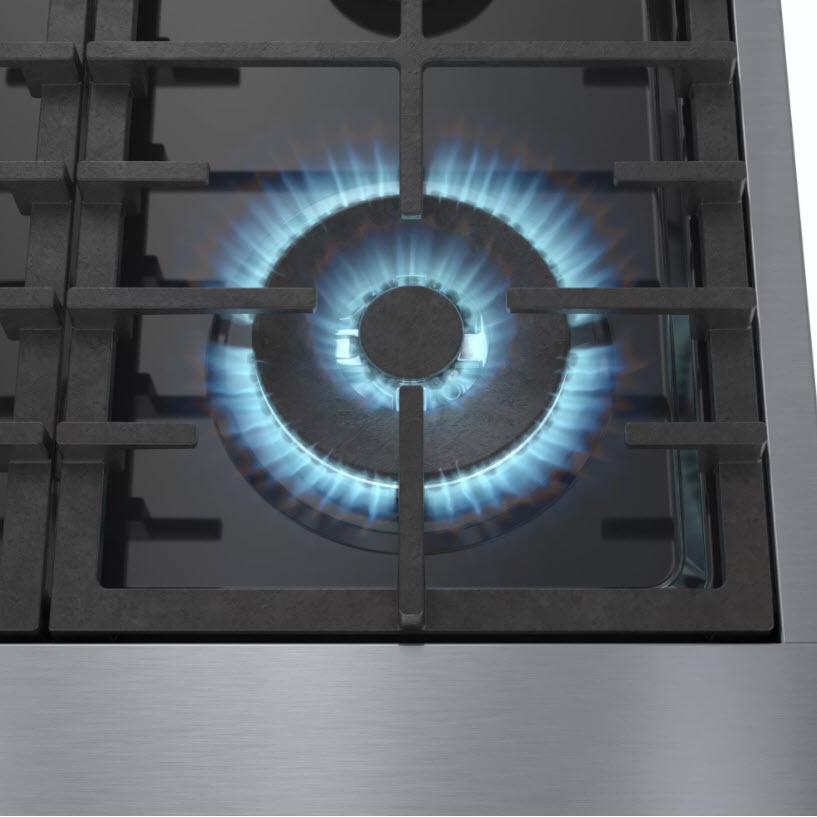

• Power of Front Right Burner (NG / LP) Dual-Flame: 18,000 / 18,000 BTU
• Power of Front Left Burner (NG / LP): 12,000 / 12,000 BTU
• Power of Back Left Burner (NG / LP): 12,000 / 12,000 BTU
• Power of Back Right Burner (NG / LP) Opti-Sim®: 5,000 / 5,000 BTU
• Power of Front Right Burner (NG / LP) Dual-Flame: 18,000 / 18,000 BTU
Burners
Sealed
Surface Features

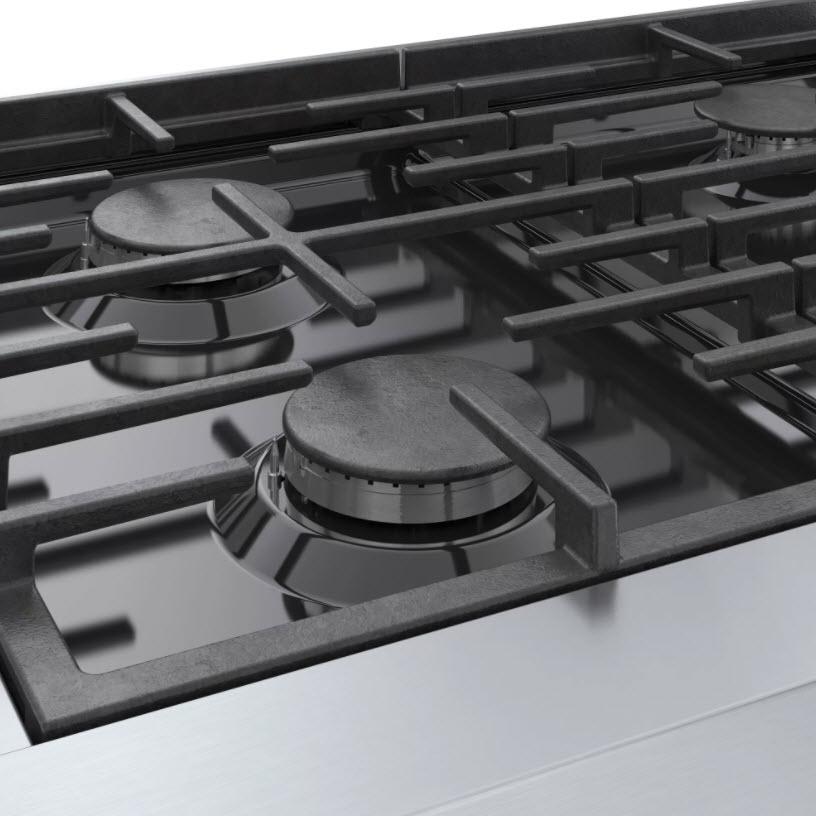

• Heavy-Duty Continuous Surface Grates
• Porcelain Coated Steel
• Porcelain Coated Steel
Features
Technologies
OptiSim® Burner
Additional Information
• Dual Flame Power Burner

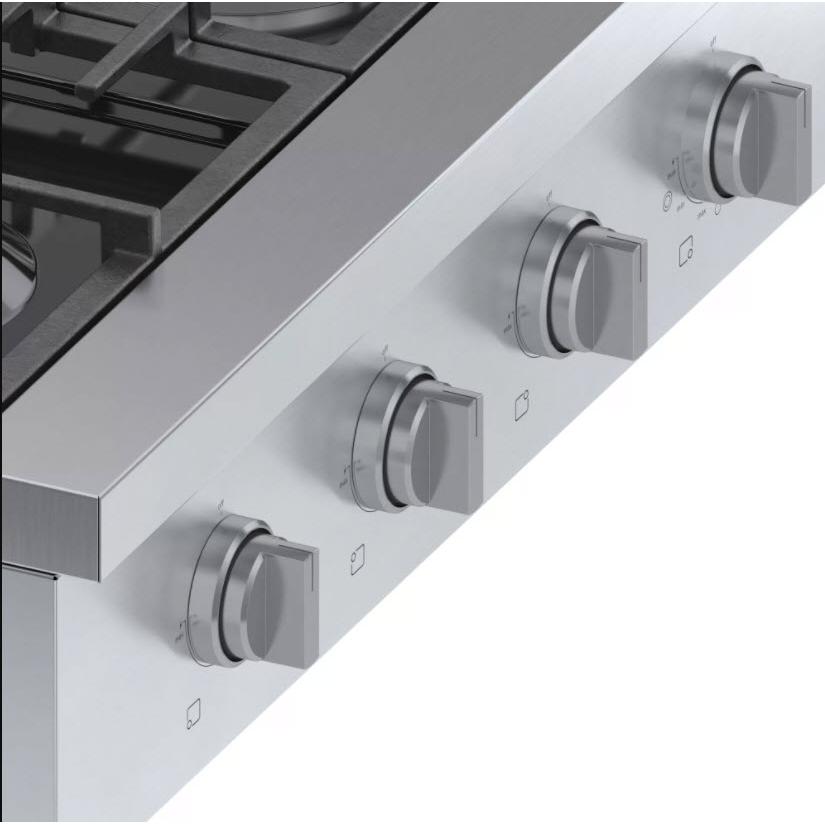

• Metal Knobs
• Electric Ignition System
• Flame Failure Device
• Continuous Grates
• Dishwasher Safe
• Metal Knobs
• Electric Ignition System
• Flame Failure Device
• Continuous Grates
• Dishwasher Safe
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
• LP Conversion Kit
• OptiSim® Cap
• OptiSim® Cap
Optional
• Griddle HEZ9GR41UC
• Wok Ring HEZ9GW23UC
• 9" Backguard (Stainless Steel) HEZ7YZ30UC
• Wok Ring HEZ9GW23UC
• 9" Backguard (Stainless Steel) HEZ7YZ30UC
Dimensions
Class Width
30"
Width
29.94 inch(es) / 76.04 cm
Height
7.5 inch(es) / 19.05 cm
Depth
26.62 inch(es) / 67.62 cm
Weight
31 lb(s) / 14.06 kg
Additional Dimensions
Required Cutout Size (HxWxD): 7 3/8" x 30" x 24"
UPC
UPC#
825225960836
