Features
AUTOCHEF®
AutoChef® applies the perfect amount of heat, without having to fidget with temperature settings. So every pancake comes out golden brown and every steak is seared to perfection. The AutoChef® sensor regulates the temperatures continuously during frying and adjusts them precisely if needed.
HOMECONNECT®
In addition to remotely monitoring* the status of every cooking zone, the new induction cooktops offer remote diagnostics for streamlined and efficient service assistance. In the HomeConnect® app, discover delicious recipes and send the appropriate settings straight to your cooktop. *Cooktops are not intended for unattended use - cooking process must be supervised.
Specifications
General
Series Name
800 Series
Color
Black
Manufacturer Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Power Of Front Left Heating Element: 1,800 W
• Power Of Front Left Heating Element (In Boost): 3,100 W
• Power Of Back Left Heating Element: 1,800 W
• Power Of Back Left Heating Element (In Boost): 3,100 W
• Power Of Center Heating Element: 2,200 / 2,600 / 3,300 W
• Power Of Center Heating Element (In Boost): 3,600 / 3,600 / 3,600 W
• Power Of Back Right Heating Element: 1,400 W
• Power Of Back Right Heating Element (In Boost): 2,200 W
• Power Of Front Right Heating Element: 2,200 W
• Power Of Front Right Heating Element (In Boost): 3,600 W
• Power Of Front Left Heating Element (In Boost): 3,100 W
• Power Of Back Left Heating Element: 1,800 W
• Power Of Back Left Heating Element (In Boost): 3,100 W
• Power Of Center Heating Element: 2,200 / 2,600 / 3,300 W
• Power Of Center Heating Element (In Boost): 3,600 / 3,600 / 3,600 W
• Power Of Back Right Heating Element: 1,400 W
• Power Of Back Right Heating Element (In Boost): 2,200 W
• Power Of Front Right Heating Element: 2,200 W
• Power Of Front Right Heating Element (In Boost): 3,600 W
Burner/Element Size
• Dimension Of Front Left Heating Element: 7"
• Dimension Of Back Left Heating Element: 7"
• Dimension Of Center Heating Element: 9" / 11" /13" Triple-ring
• Dimension Of Back Right Heating Element: 6"
• Dimension Of Front Right Heating Element: 9"
• Dimension Of Back Left Heating Element: 7"
• Dimension Of Center Heating Element: 9" / 11" /13" Triple-ring
• Dimension Of Back Right Heating Element: 6"
• Dimension Of Front Right Heating Element: 9"
Elements
Smoothtop
Features
Technologies
• AutoChef®
• Home Connect
• Induction Technology
• Home Connect
• Induction Technology
Wi-Fi
Yes

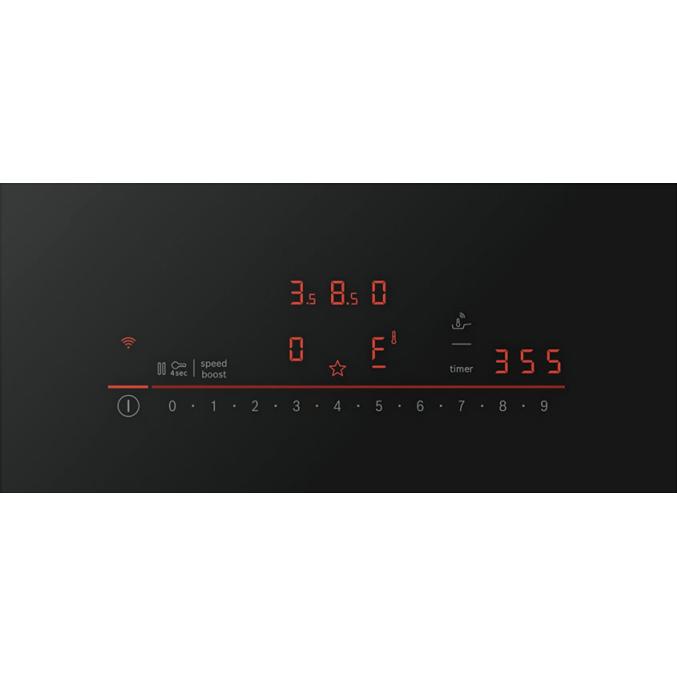

Digital Display
Yes
Electrical Information
Information
• 6,240 / 7,200 W
• 30 A
• 208 / 240 V
• 60 Hz
• Power Cord Length: 37"
• 30 A
• 208 / 240 V
• 60 Hz
• Power Cord Length: 37"
Certifications and Approvals
ADA Compliant
Yes
Dimensions
Class Width
36"
Width
37.01 inch(es) / 94.0 cm
Height
4.13 inch(es) / 10.5 cm
Depth
21.26 inch(es) / 54.0 cm
Weight
50 lb(s) / 22.68 kg
Additional Dimensions
• Required Cutout Size (HxWxD): 4 1/8" x 34 7/8" x 20"
• Minimum Distance From Counter Front: 2 1/4"
• Minimum Distance From Rear Wall: 2"
• Minimum Distance From Counter Front: 2 1/4"
• Minimum Distance From Rear Wall: 2"
