Features

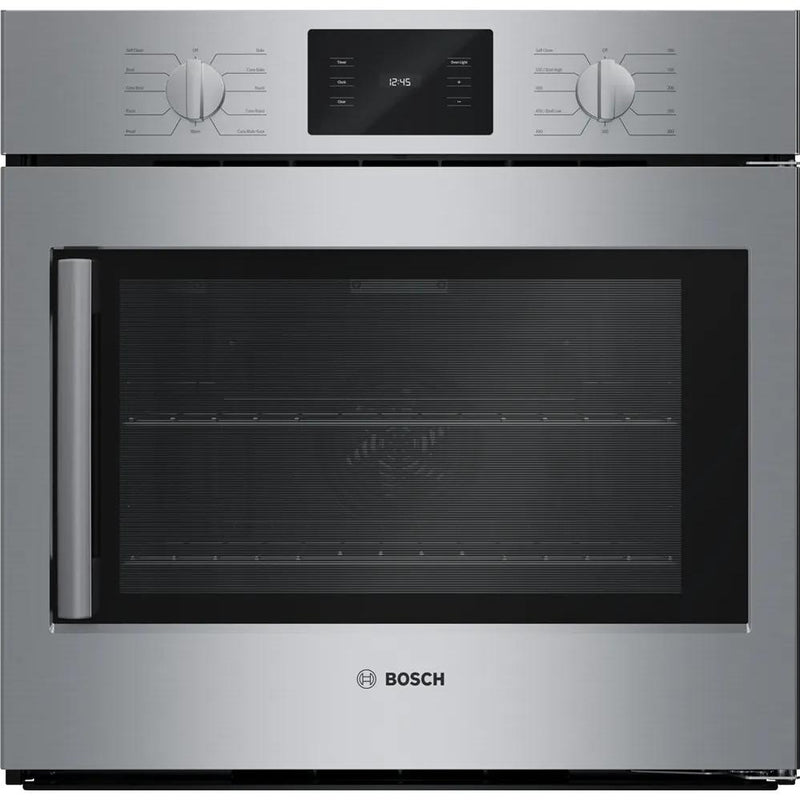

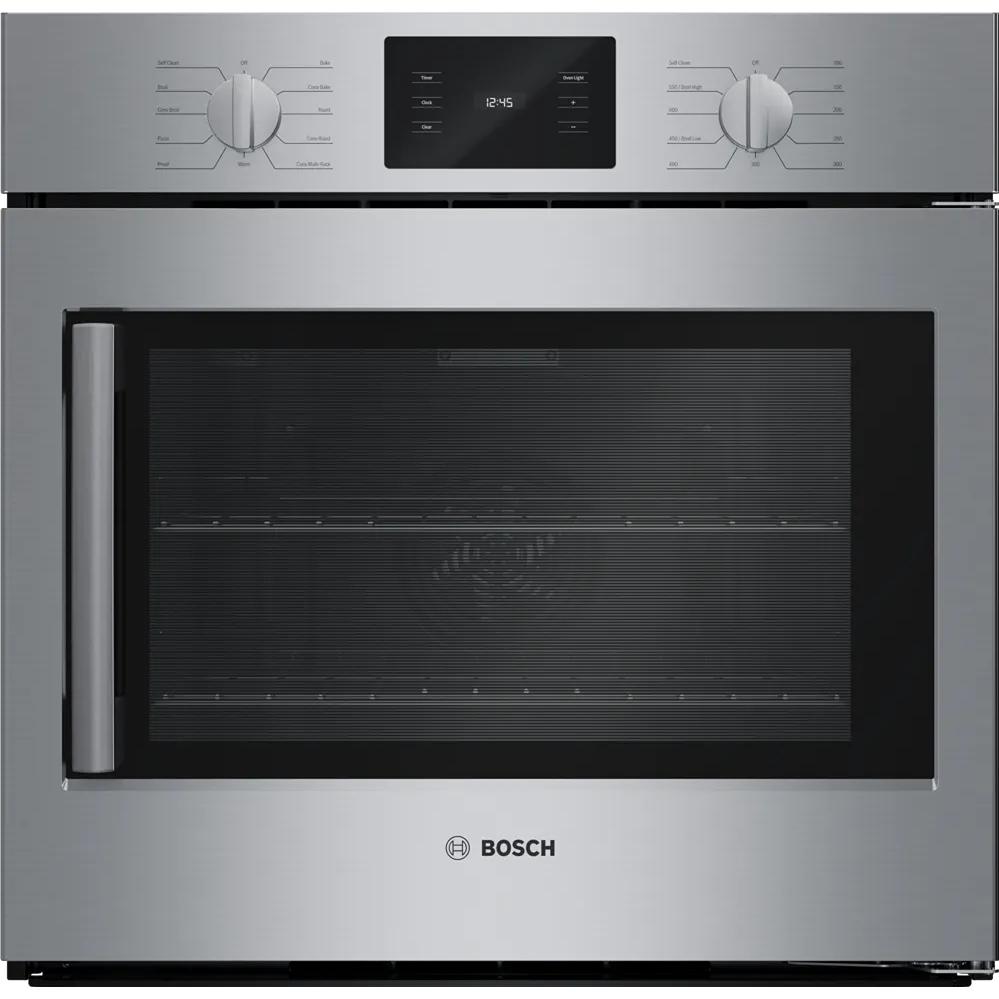

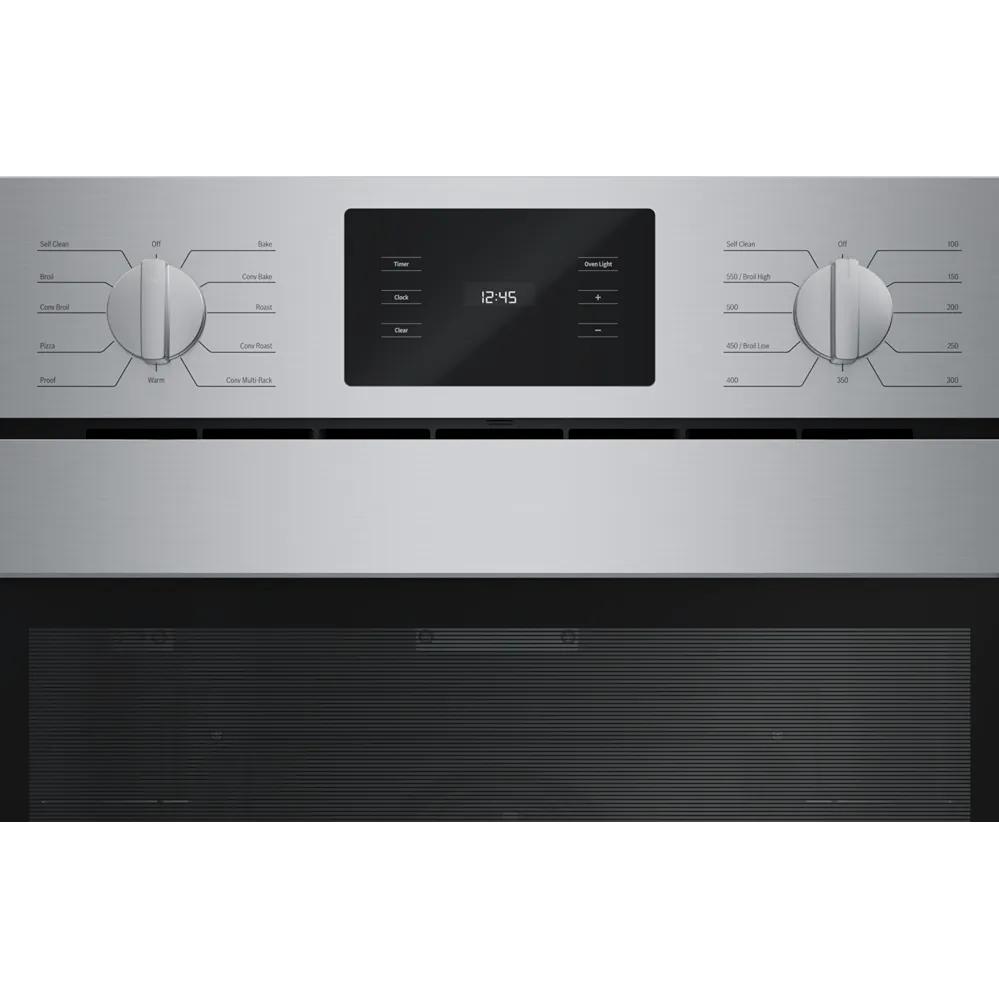

METAL KNOBS FOR STYLISH CONTROL
Ovens feature heavy duty metal knobs for temperature changes and cooking modes.

GRILL INSIDE WITH THE BROIL MODE
Broil mode uses intense heat radiated from the upper element and delivers the perfect char, sear, and grill without the mess. It is perfect for meats and bubbling crusts on casseroles.

Additional Features

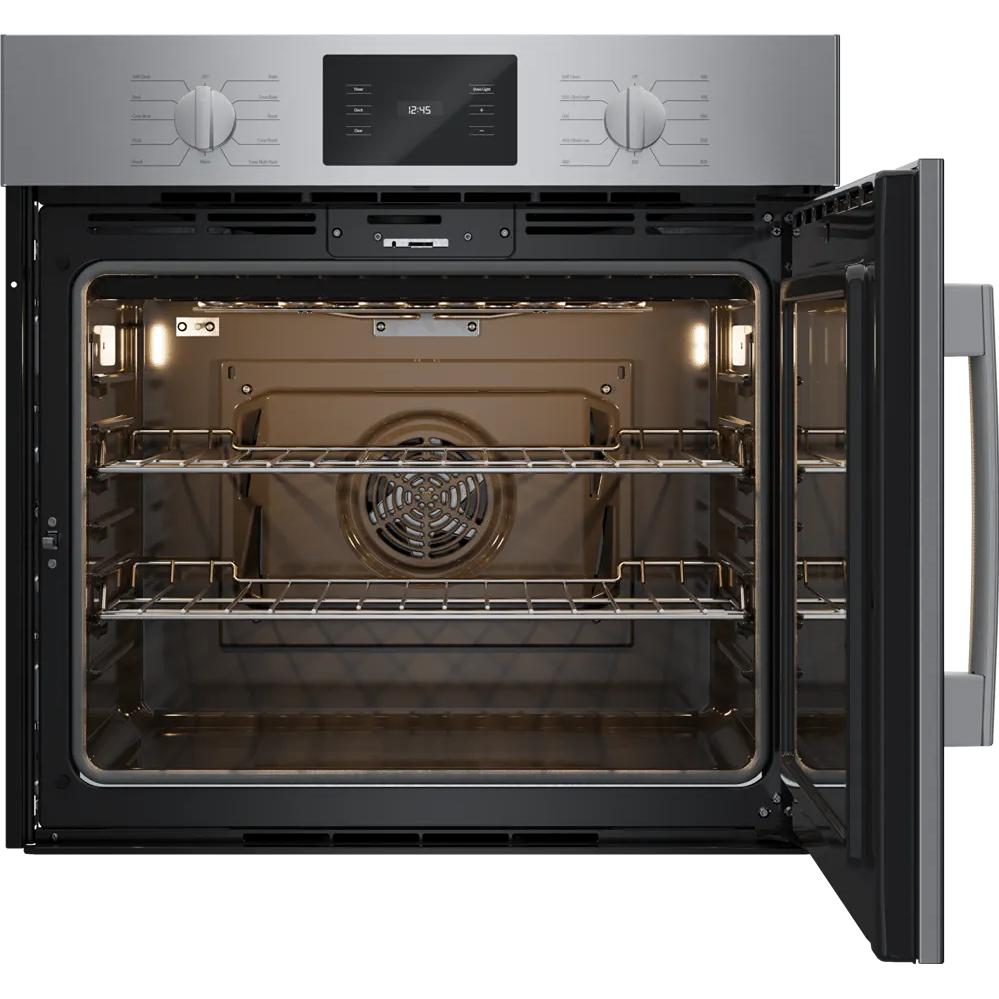

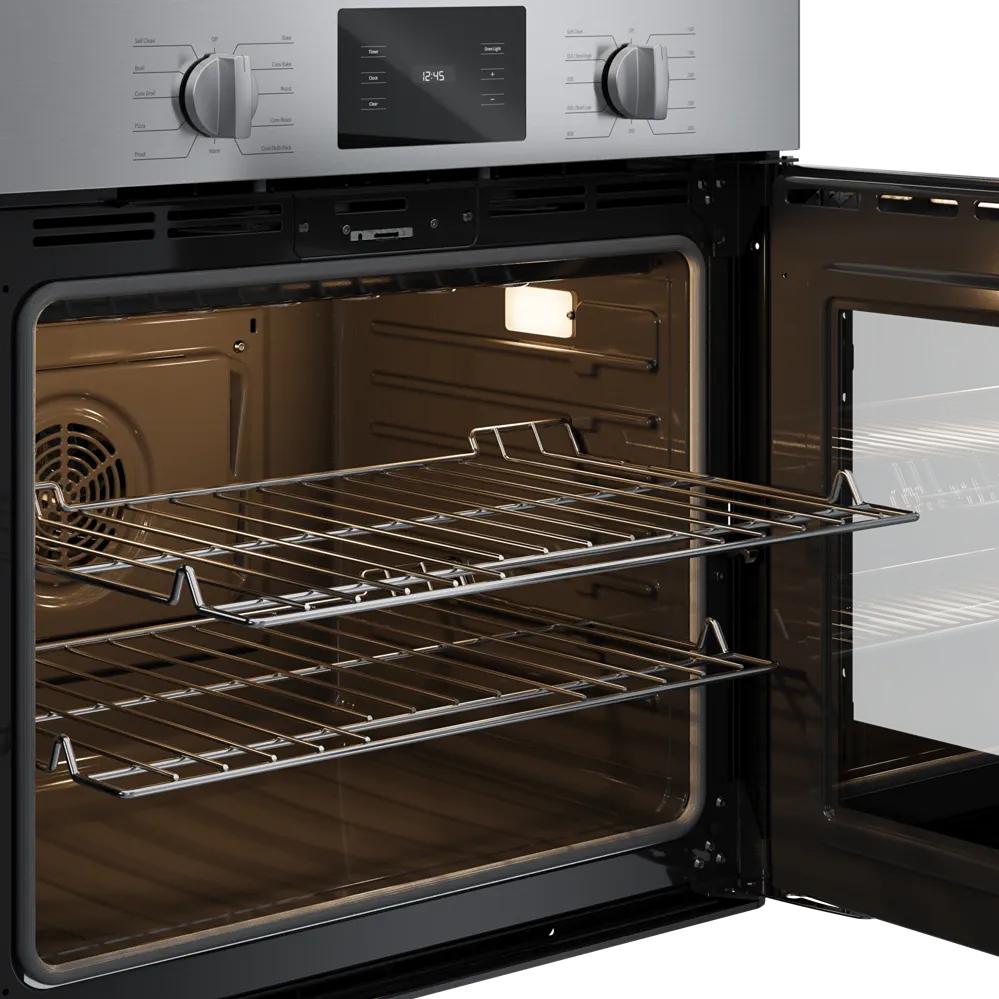

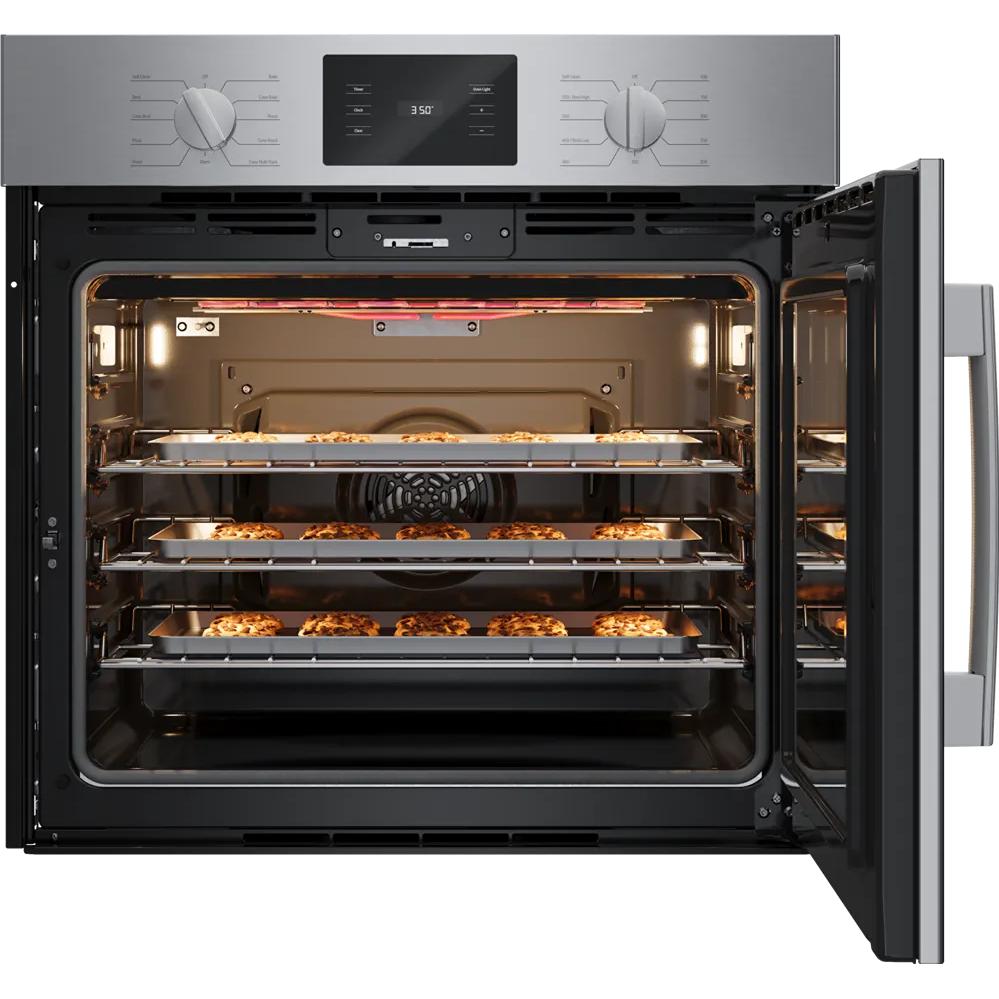

EASY AND ERGONOMIC ACCESS
Our SideOpening oven doors make it more comfortable and ergonomic to access inside your oven. It's the surprisingly simple details that make a difference in your kitchen.
Specifications
General
Series Name
500 Series
Fuel Type
Electric
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Total Capacity
4.6 cu. ft.
Main Oven Capacity
4.6 cu. ft.
Appliance Care
Self-Clean
Oven Specifications
Technologies
Convection Technology
Programs
• Bake
• Variable Broil (Hi & Low)
• Roast
• Warm
• Sabbath
• Proof Dough
• Convection Bake
• Convection Broil
• Convection Roast
• Pizza
• Convection Multi-Rack
• Convection Conversion
• Variable Broil (Hi & Low)
• Roast
• Warm
• Sabbath
• Proof Dough
• Convection Bake
• Convection Broil
• Convection Roast
• Pizza
• Convection Multi-Rack
• Convection Conversion
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Bake / broil element: 2,400 / 3,800 W
• Convection element: 2,000 W
• Heavy-duty metal knobs
• SideOpening door
• Convection element: 2,000 W
• Heavy-duty metal knobs
• SideOpening door
Certifications
Certifications
• Sabbath Mode
• ADA Compliant
• ADA Compliant
Electrical Information
Information
• 6,325 W
• 30 A
• 240 / 208 V
• 60 Hz
• Power cord length: 50"
• 30 A
• 240 / 208 V
• 60 Hz
• Power cord length: 50"
Accessories
Included
2 Standard Oven Racks
Optional
HEZTR301 30" Telescopic Rack
Dimensions
Class Width
30"
Width
29.75 inch(es) / 75.57 cm
Height
29 inch(es) / 73.66 cm
Depth
24.5 inch(es) / 62.23 cm
Additional Dimensions
• Required cutout size – Standard (HxWxD): 27" – 28 5/8" x 28 1/2" x 23 1/2"
• Required cutout size – Flush (HxWxD): 29 1/8" x 30 3/4" x 24 1/2"
• Overall oven interior dimensions (HxWxD): 17 13/16" x 24 1/8" x 18"
• Usable oven interior dimensions (HxWxD): 12 5/16" x 23 1/4" x 15 1/4"
• Required cutout size – Flush (HxWxD): 29 1/8" x 30 3/4" x 24 1/2"
• Overall oven interior dimensions (HxWxD): 17 13/16" x 24 1/8" x 18"
• Usable oven interior dimensions (HxWxD): 12 5/16" x 23 1/4" x 15 1/4"
Weight
149.01 lb(s) / 67.59 kg
