Features
CAPTUR™ SYSTEM
The Broan Captur™ exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance quieter operation and less energy use.
Additional Features
LIGHTING BUILT-IN LED MODULES
Lighting built-in LED modules that provide an even lighting over the cooktop.
Specifications
General
Series Name
Alta
Blower Included
Yes
Airflow
250 CFM
Style
Standard
Color
White
Manufacturer Color
White
Installation
Under-Cabinet
Features
Technologies
Captur™ System
Ducting Information
• Non-Ducted Re-circulation Capable
• Ducting Size :3-1/4 in X 10 in (H-V) or 7 in Round
• Ducting Size :3-1/4 in X 10 in (H-V) or 7 in Round
Speeds
Hidden 2-Speed Rocker Control
Additional Information
• 1-Level Lighting Built-in LED Modules (2) that Provide an Even Lighting Over the Cooktop
• Two High-Efficiency Micro Filters
• Quiet Range Hood Offering a Sound Level of 1.5 Sones at Low Speed

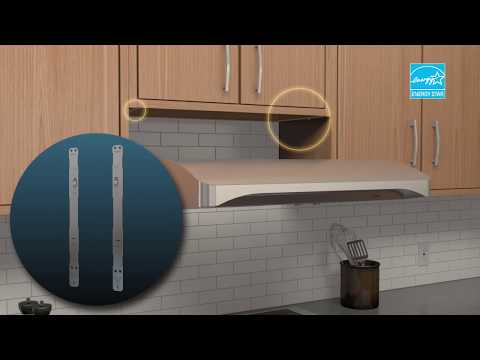

• EZ 1 Brackets Make It Easy for Single-Person Installation in Less than Half the Time of Traditional Methods
• Two High-Efficiency Micro Filters
• Quiet Range Hood Offering a Sound Level of 1.5 Sones at Low Speed
• EZ 1 Brackets Make It Easy for Single-Person Installation in Less than Half the Time of Traditional Methods
Electrical Information
Information
• 120 V
• 0.65 A
• 0.65 A
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
Yes
Accessories
Optional
• HPFAMM30 Replacement Filters
• HPF30 Charcoal Replacement Filters
• HPF30 Charcoal Replacement Filters
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
5 inch(es) / 12.7 cm
Depth
22 inch(es) / 55.88 cm
Warranty
Warranty
• 1 Year Parts and Labor
• 3 Years on LED Modules
• 3 Years on LED Modules
UPC
UPC#
26715249725
