Features

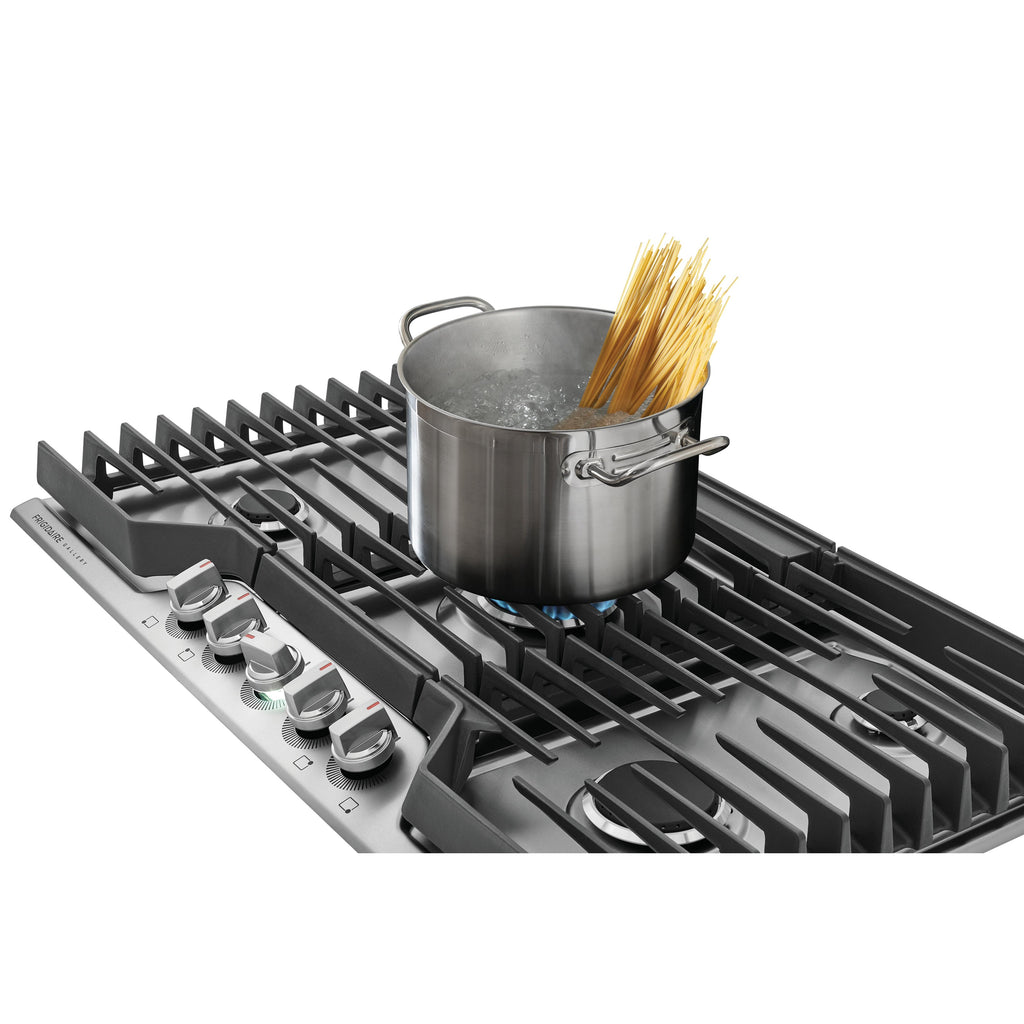

QUICK BOIL BURNER
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

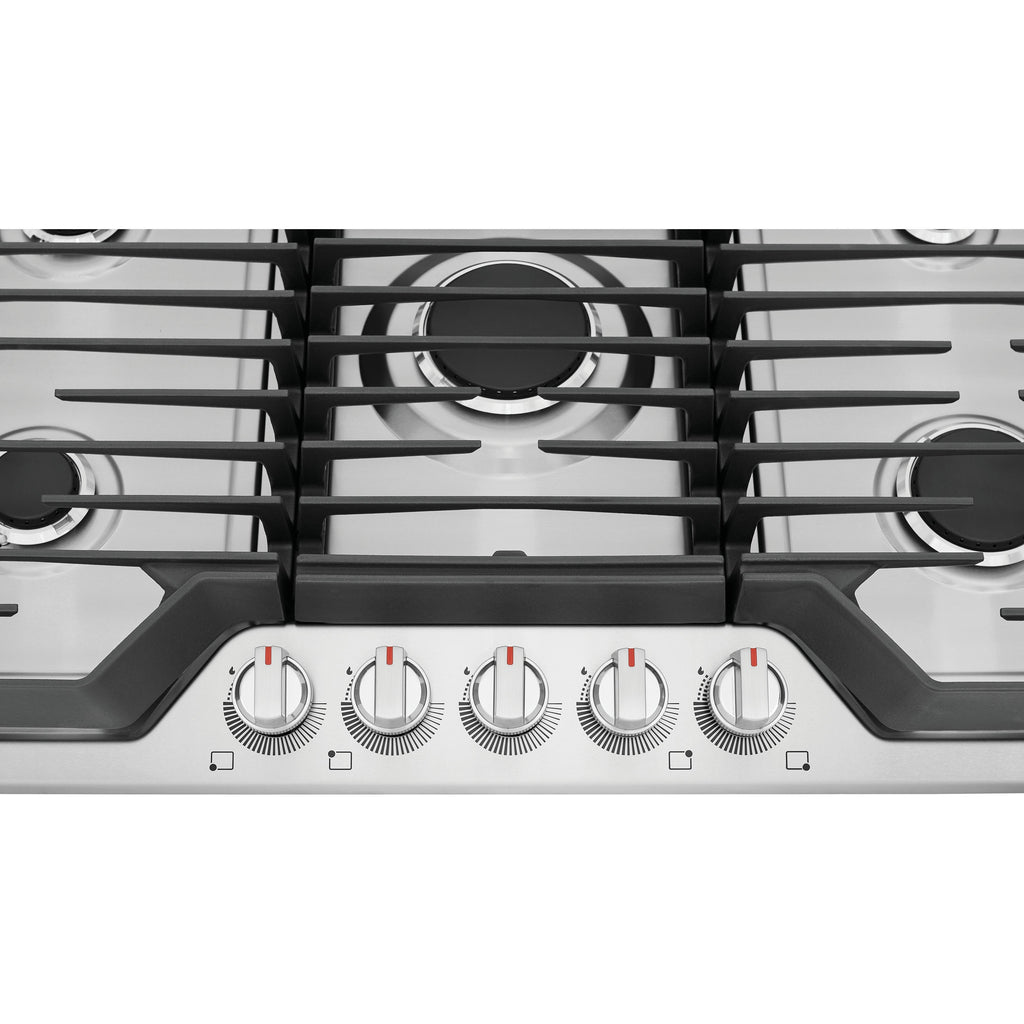

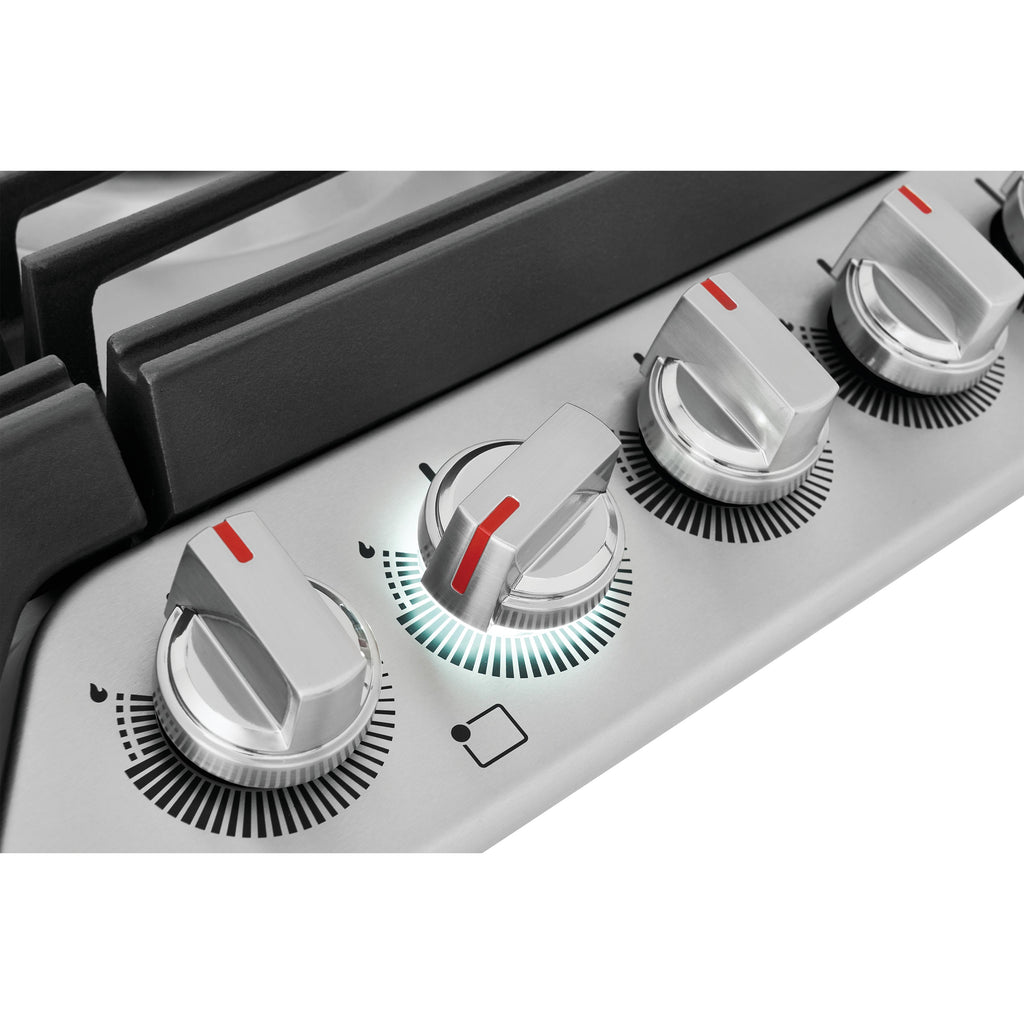

BRIGHT, BACKLIT LED KNOBS
Backlit LED knobs light up when the cooktop is in use.

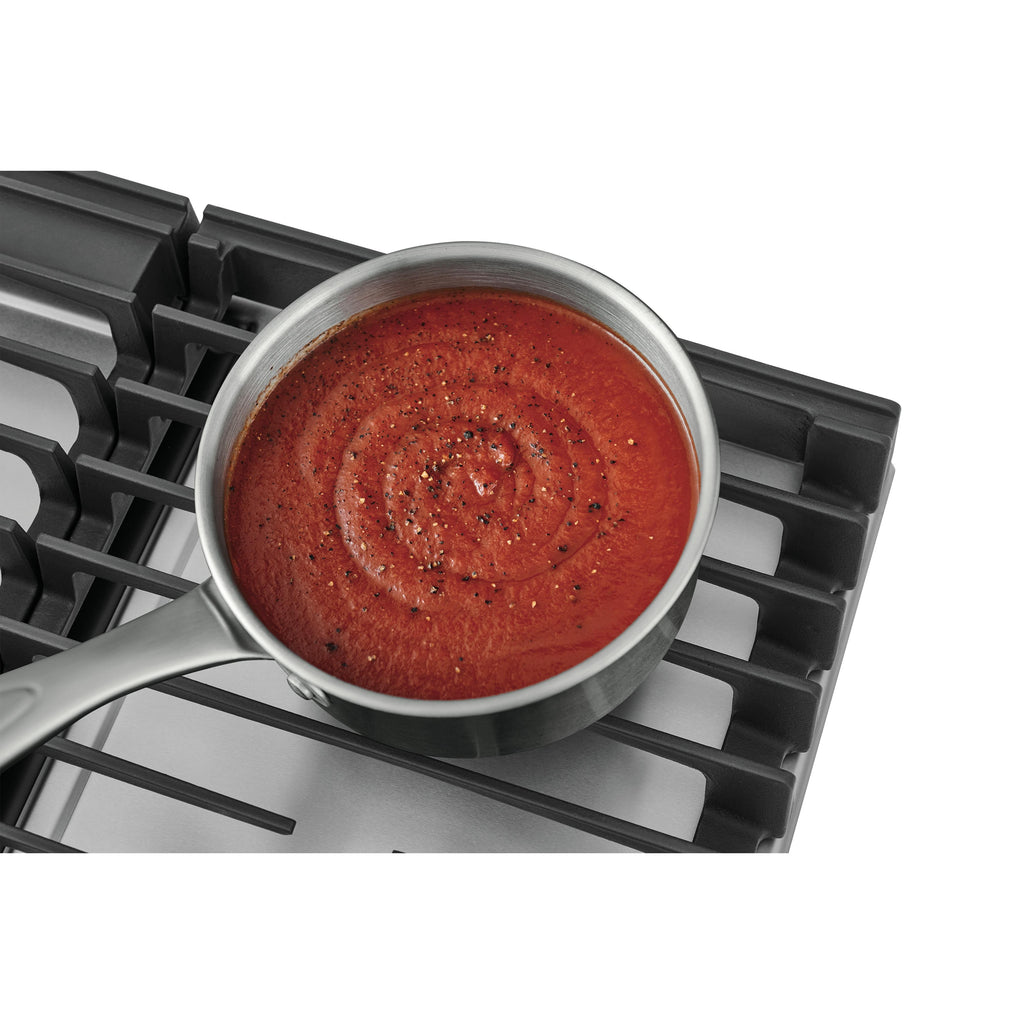

LOW SIMMER BURNER
Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.

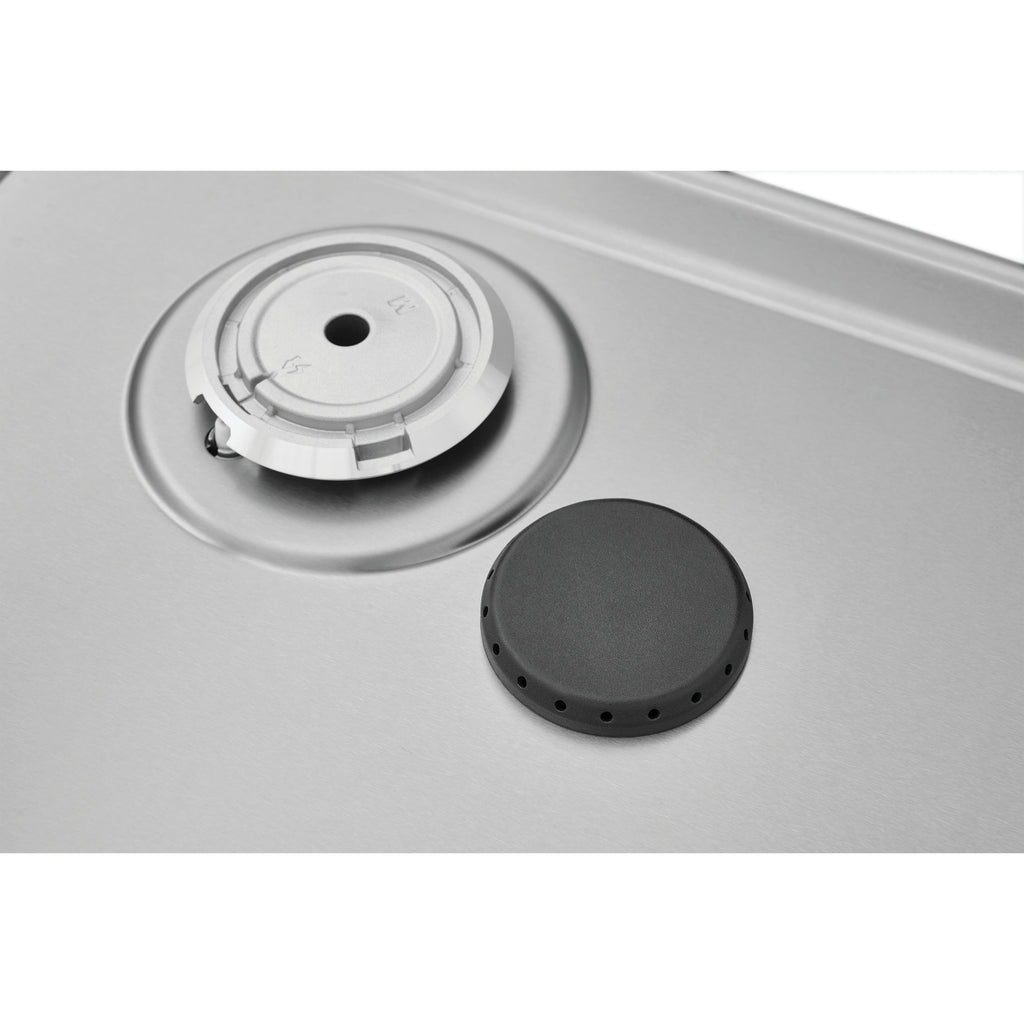

DISHWASHER-SAFE BURNER CAPS
Cleaning your cooktop is easier with removable, dishwasher-safe burner caps.

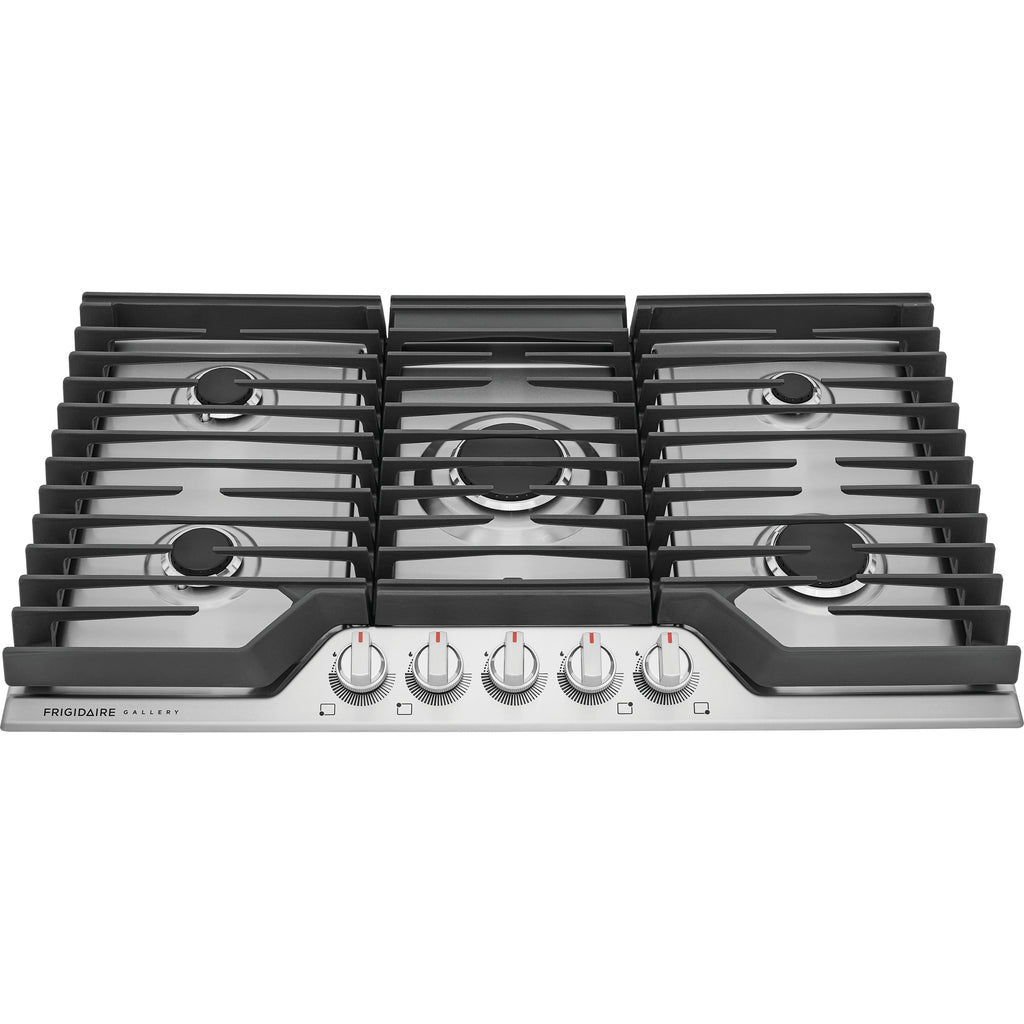

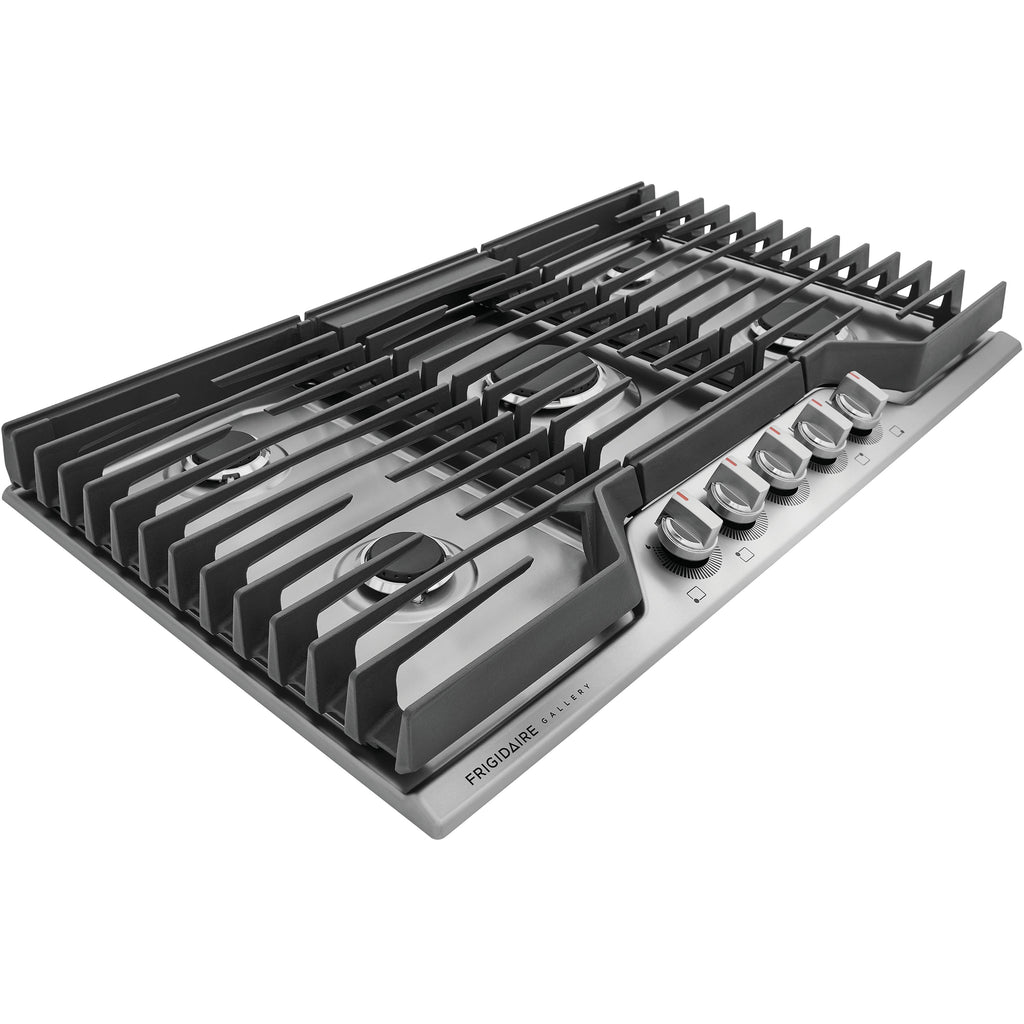

CONTINUOUS GRATES
Continuous Grates make it easy to move heavy pots and pans between burners without lifting.
SPILLSAFE® COOKTOP
Cooktop contains your spillovers for easier clean up.
APPROVED OVER FRIGIDAIRE® ELECTRIC WALL OVENS
Cooktops are approved for installation above any of the Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Right Front Element Burner: 12,000 BTU
• Right Rear Element Burner: 5,000 BTU
• Left Front Element Burner: 9,500 BTU
• Left Rear Element Burner: 9,500 BTU
• Center Front Element Burner: 18,000 BTU
• Right Rear Element Burner: 5,000 BTU
• Left Front Element Burner: 9,500 BTU
• Left Rear Element Burner: 9,500 BTU
• Center Front Element Burner: 18,000 BTU
Surface Features
• Grate material: Cast iron
• Grate quantity: 3
• Grate style: Continuous
• Grate quantity: 3
• Grate style: Continuous
Features
Additional Information
• Power supply connection location: Right center
• Gas supply connection location: Top right
• Control location: Front
• Backlit knobs
• Gas supply connection location: Top right
• Control location: Front
• Backlit knobs
Electrical Information
Information
• Minimum circuit required: 5 Amps
• Voltage rating: 120 V
• Voltage rating: 120 V
Certifications and Approvals
ADA Compliant
Yes
Information
• CSA listed
• UL listed
• UL listed
Accessories
Included
• Cooktop LP conversion kit included
• Power cord included
• Power cord included
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
2.44 inch(es) / 6.2 cm
Depth
21 inch(es) / 53.34 cm
Additional Dimensions
• Cutout Height: 7 1/2"
• Minimum Cutout Width: 33 7/8"
• Minimum Cutout Depth: 19"
• Maximum Cutout Width: 35 5/8"
• Maximum Cutout Depth: 20"
• Minimum Cutout Width: 33 7/8"
• Minimum Cutout Depth: 19"
• Maximum Cutout Width: 35 5/8"
• Maximum Cutout Depth: 20"
Warranty
Warranty
Limited 1-year warranty for labor and parts
UPC
UPC#
12505565793
