Features
10"/6"DUAL-CHOICE™ ELEMENT
Enjoy cooking flexibility and efficiency with a two-tiered single element that accommodates various-sized cookware.

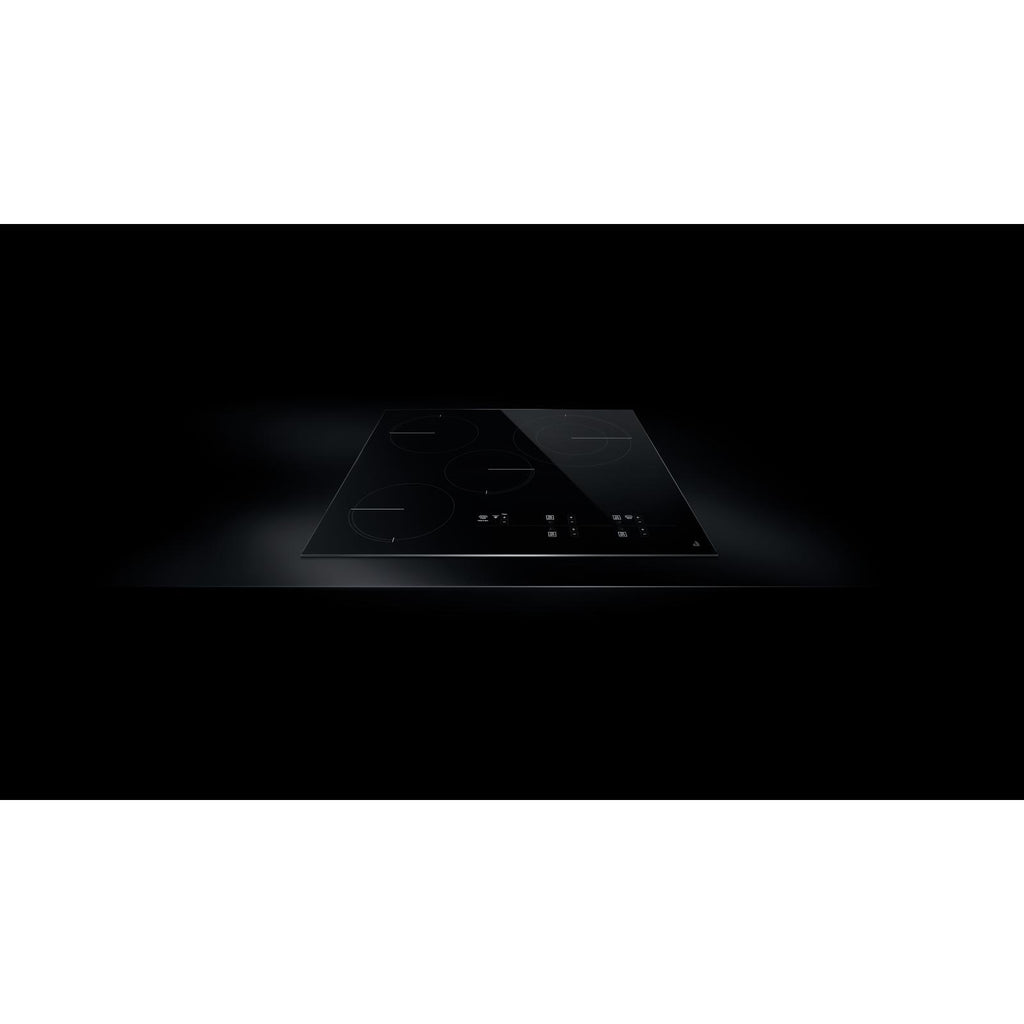

OBLIVION GLASS
Arresting black glass seizes its surroundings, drawing everything into unknown territory. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

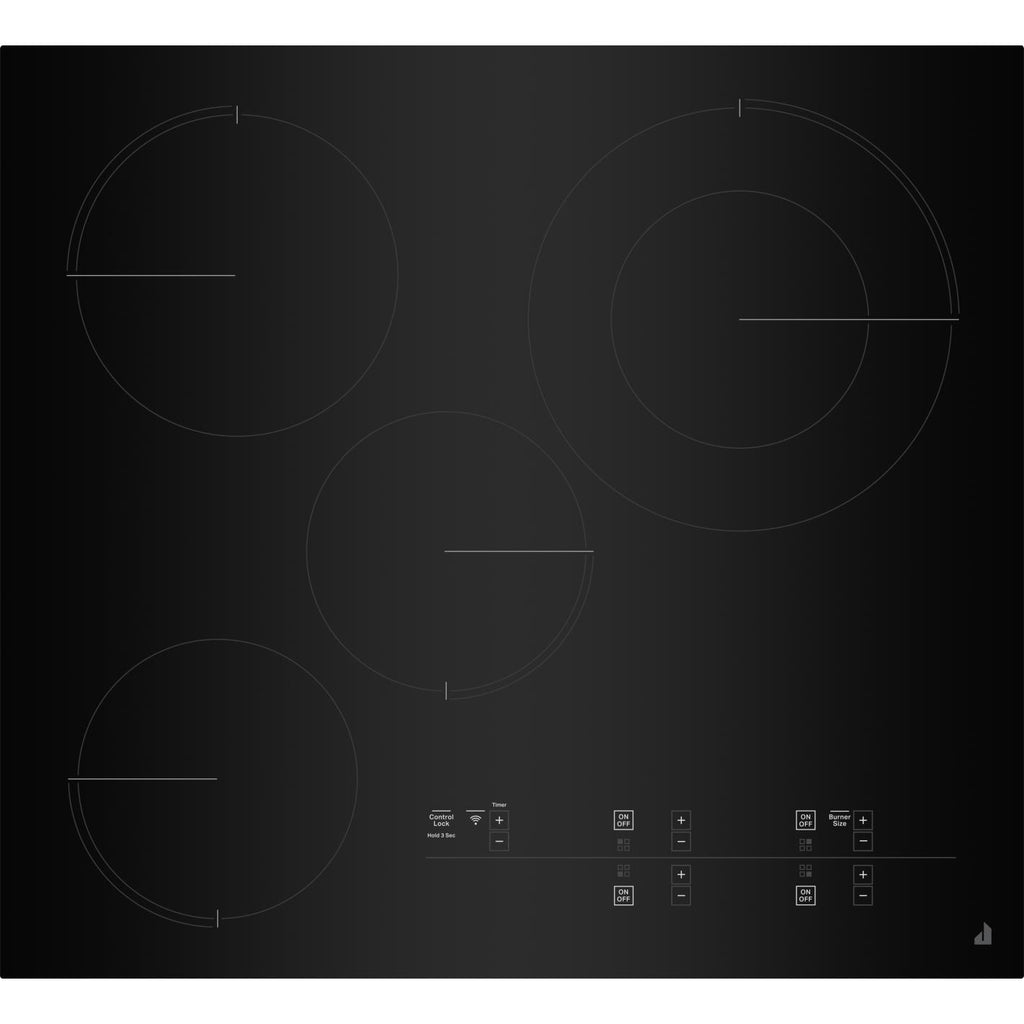

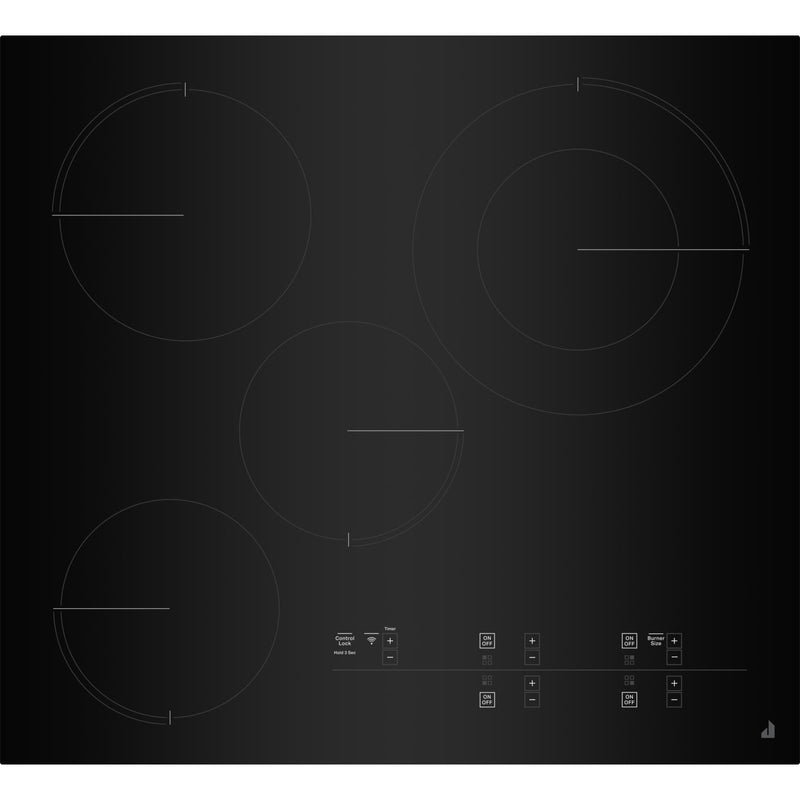

EMOTIVE CONTROLS
Striking, intuitive and easy to clean. Inviting controls wait expectantly for the lightest touch to unleash performance.
RADIANT ELEMENTS
Located beneath a smooth, glass-ceramic cooktop, these responsive electric elements transfer heat efficiently to your cookware.
INSTALL OVER SINGLE WALL OVEN
Versatility and functionality converge with the ability to install in a countertop above select Jenn Air® single wall ovens.
KEEP WARM™ FUNCTION ON ALL ELEMENTS
Lets you keep foods and delicate sauces at their ideal serving temperatures until they are ready to be served or while other items finish cooking.
HOT SURFACE INDICATOR LIGHT
Each heating element includes this safety feature, alerting you to an element that has not yet cooled, even after it’s been turned off.
ADA COMPLIANT
Designed to meet ADA standards when installed according to the ADA guidelines.
SIMMER FUNCTION ON ALL ELEMENTS
Provides the optimal temperature for gently cooking delicate sauces and foods.
Specifications
General
Series Name
Oblivion
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Left Front Element: 1200W
• Left Rear Element: 1800W
• Right Front Element: 1300W
• Right Rear Element: 3000W/1900W
• Left Rear Element: 1800W
• Right Front Element: 1300W
• Right Rear Element: 3000W/1900W
Burner/Element Size
• Left Front Element: 6"
• Left Rear Element: 8"
• Right Front Element: 6"
• Right Rear Element: 10"/6"
• Left Rear Element: 8"
• Right Front Element: 6"
• Right Rear Element: 10"/6"
Elements
Smoothtop
Surface Features
• Design Expression: Oblivian Glass
• Cooktop Surface Material: Glass
• Cooktop Surface Material: Glass
Features
Technologies
• Keep Warm™ Function on All Elements
• Dual-Choice™ Element
• Dual-Choice™ Element
Control Lock
Yes
Digital Display
Yes
Additional Information
• Control Type: Electronic Touch
• Heating Element On Indicator Light
• Digital Display
• Hot Surface Indicator Light
• Installs Over Built-In Oven
• Combinations with Oven: JJW2427,JJW2430,JJW3430
• Heating Element On Indicator Light
• Digital Display
• Hot Surface Indicator Light
• Installs Over Built-In Oven
• Combinations with Oven: JJW2427,JJW2430,JJW3430
Electrical Information
Information
• Annual Energy Usage [kWh]: 258
• Amps: 40
• Volts: 240/208
• Hz: 60
• 7,300-watt
• Amps: 40
• Volts: 240/208
• Hz: 60
• 7,300-watt
Certifications and Approvals
ADA Compliant
Yes
Information
UL listed
Accessories
Optional
Power Cord
Dimensions
Class Width
24"
Width
23.81 inch(es) / 60.48 cm
Height
5.25 inch(es) / 13.34 cm
Depth
21.75 inch(es) / 55.25 cm
Weight
42.31 lb(s) / 19.19 kg
Additional Dimensions
• Cutout Depth: 20-3/8"
• Cutout Width: 22-1/16"
• Cutout Width: 22-1/16"
Shipping Dimensions
Width
27.75 inch(es) / 70.49 cm
Height
9.25 inch(es) / 23.5 cm
Depth
25 inch(es) / 63.5 cm
Weight
46.01 lb(s) / 20.87 kg
UPC
UPC#
883049592374
