Specifications
General
Color
Stainless Steel
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Left Rear Element: 2100W/3500W Boost
• Right Rear Element: 1200W/1800W Boost
• Right Front Element: 2100W/3500W Boost
• Bridge Left Front + Left Rear: 3300W Max
• Right Rear Element: 1200W/1800W Boost
• Right Front Element: 2100W/3500W Boost
• Bridge Left Front + Left Rear: 3300W Max
Burner/Element Size
• Left Rear Element: 8.26" x 7.08"
• Right Rear Element: 5.7"
• Right Front Element: 8.26"
• Bridge Left Front + Left Rear: 14.50"L x 8.31"W
• Right Rear Element: 5.7"
• Right Front Element: 8.26"
• Bridge Left Front + Left Rear: 14.50"L x 8.31"W
Elements
Smoothtop
Features
Technologies
Induction Technology
Control Lock
Yes
Digital Display
Yes
Additional Information

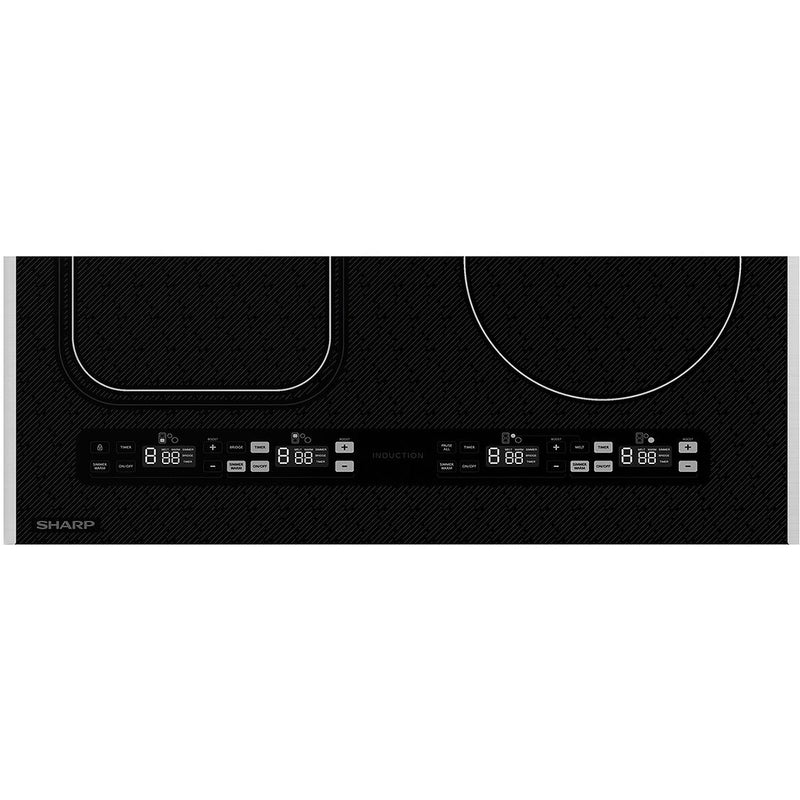

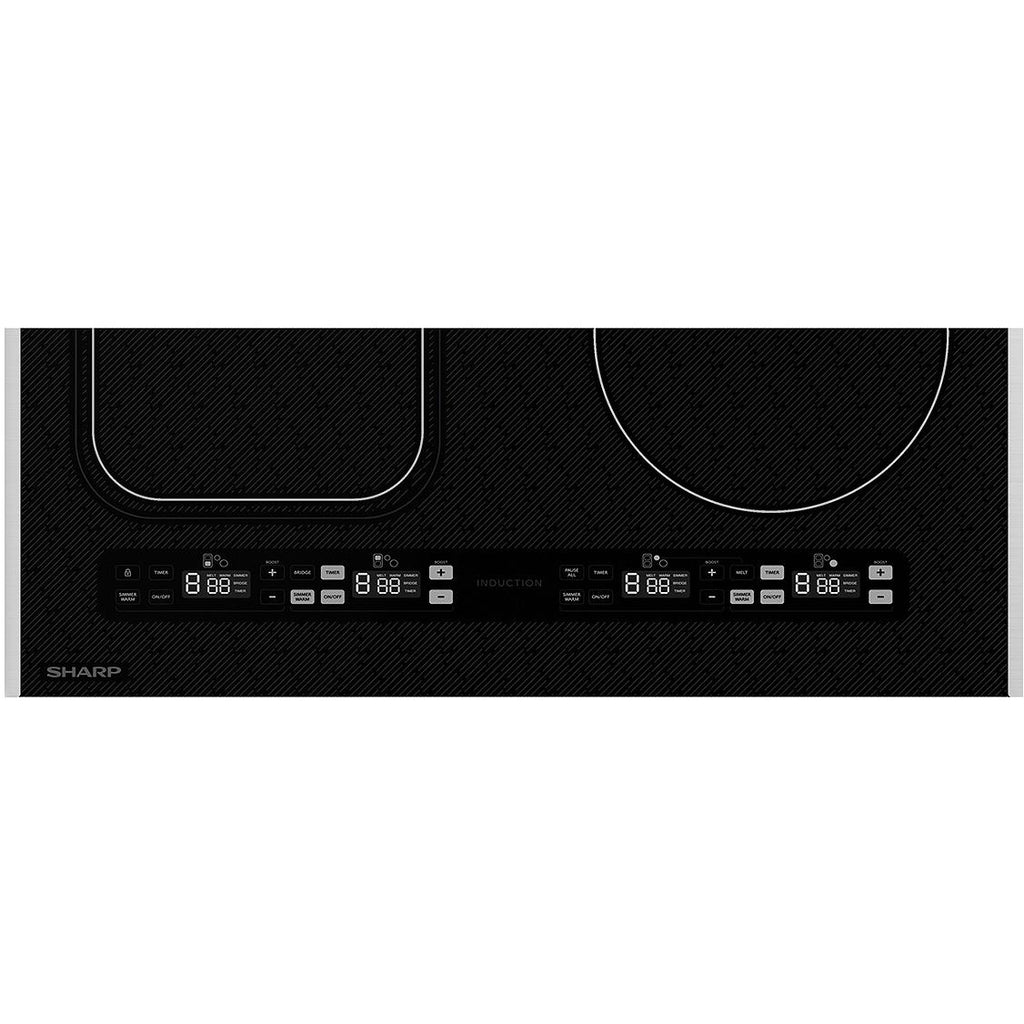

• Glass Touch Controls
• 1-9 Adjustment Levels
• Warm, Simmer, Melt
• 1-99 Minute Timer
• Automatic Pan Detection
• Pan Size Detection
• Auto Turn Off
• White LED Display
• 1-9 Adjustment Levels
• Warm, Simmer, Melt
• 1-99 Minute Timer
• Automatic Pan Detection
• Pan Size Detection
• Auto Turn Off
• White LED Display
Electrical Information
Information
• 7500W
• 240 V
• 60 Hz
• 30A
• 240 V
• 60 Hz
• 30A
Certifications and Approvals
Information
ETL, CETL, FCC, CSA
Dimensions
Class Width
24"
Width
24.02 inch(es) / 61.0 cm
Height
2.68 inch(es) / 6.8 cm
Depth
8.27 inch(es) / 21.0 cm
Weight
34 lb(s) / 15.42 kg
Additional Dimensions
Cutout: 22 7/16' x 4 1/2" x 19 5/8"
Shipping Dimensions
Width
30.75 inch(es) / 78.11 cm
Height
9.5 inch(es) / 24.13 cm
Depth
25 inch(es) / 63.5 cm
Weight
39 lb(s) / 17.69 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
074000621619
