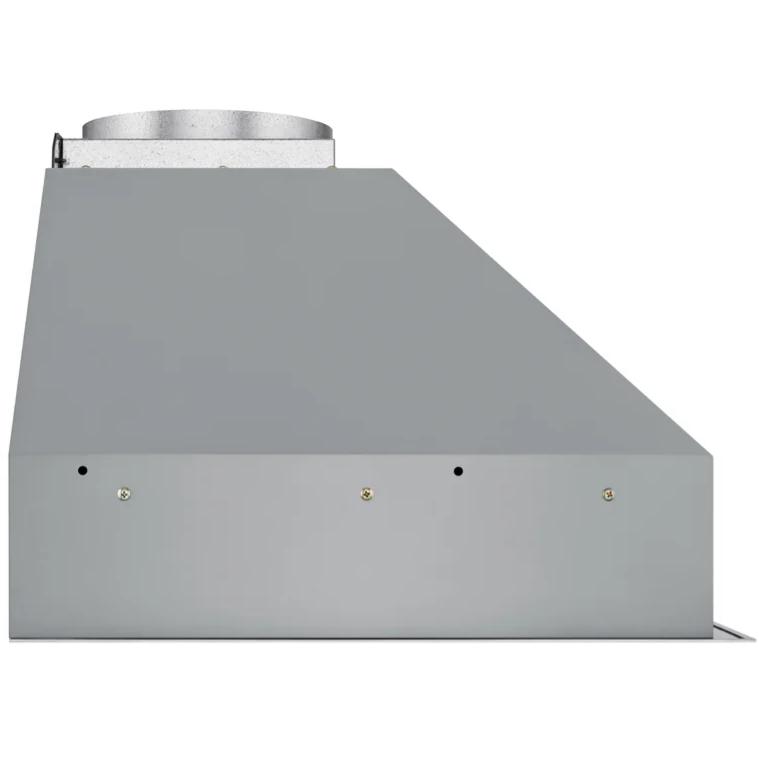

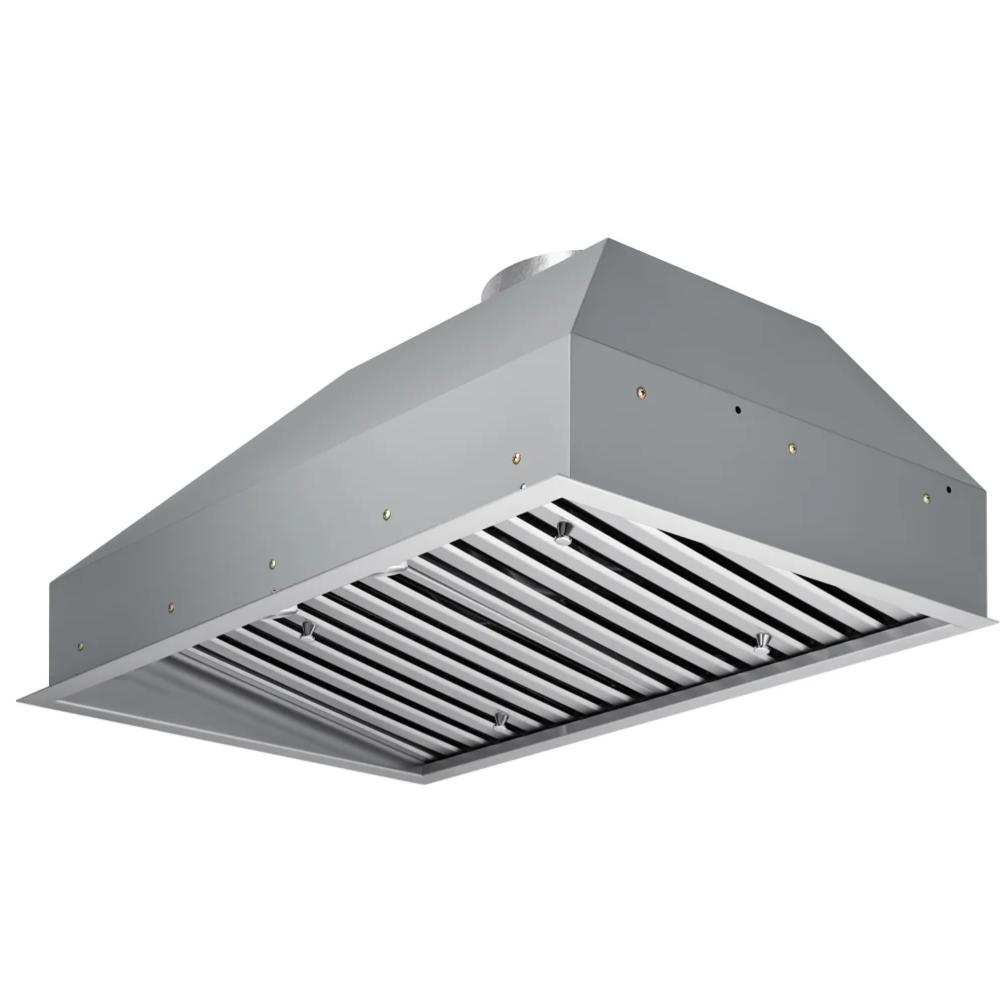

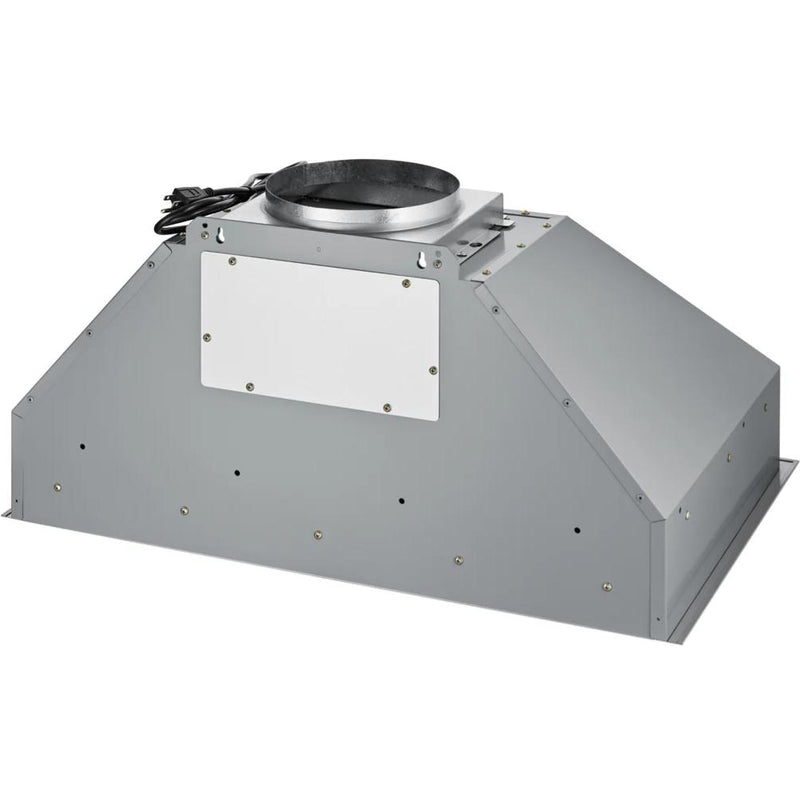

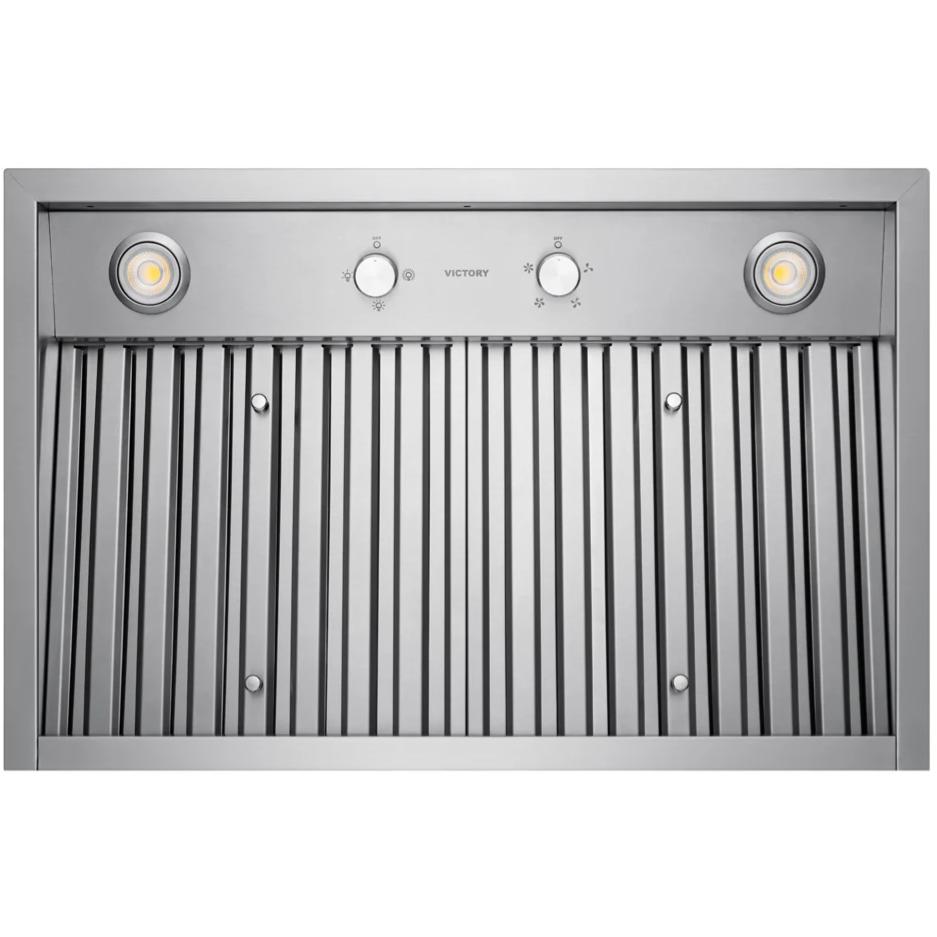

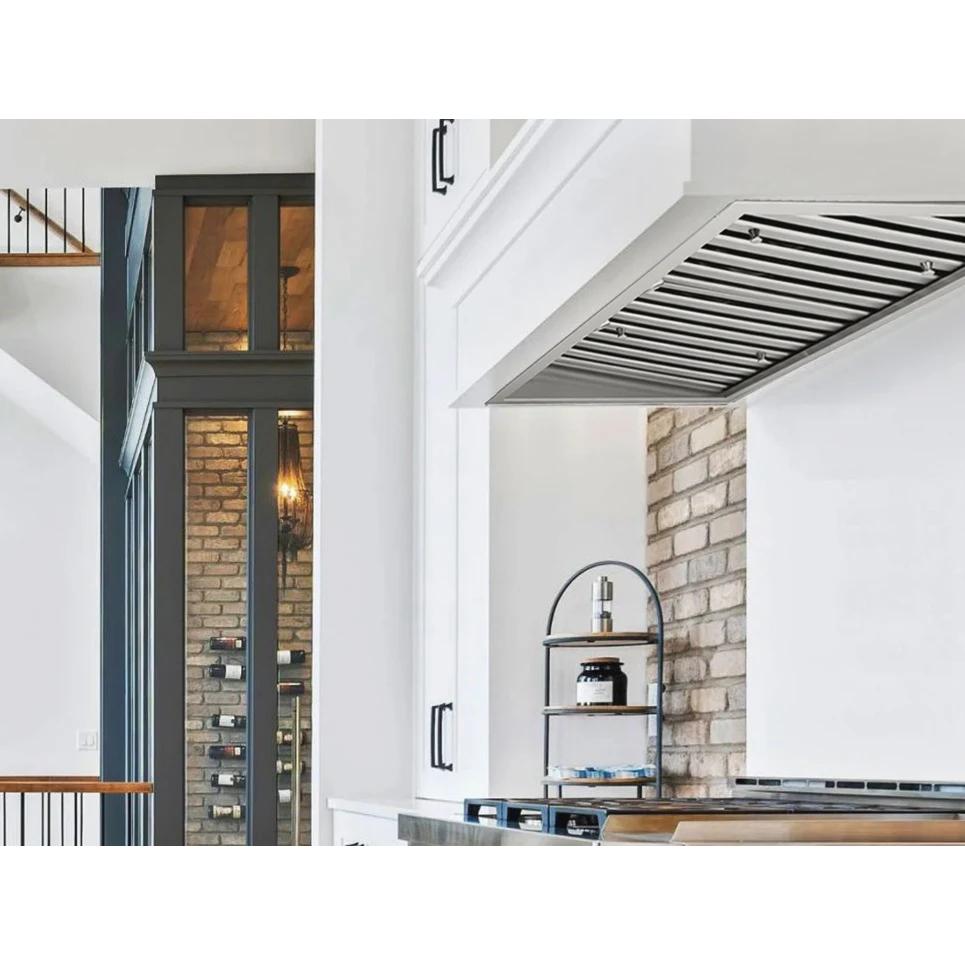

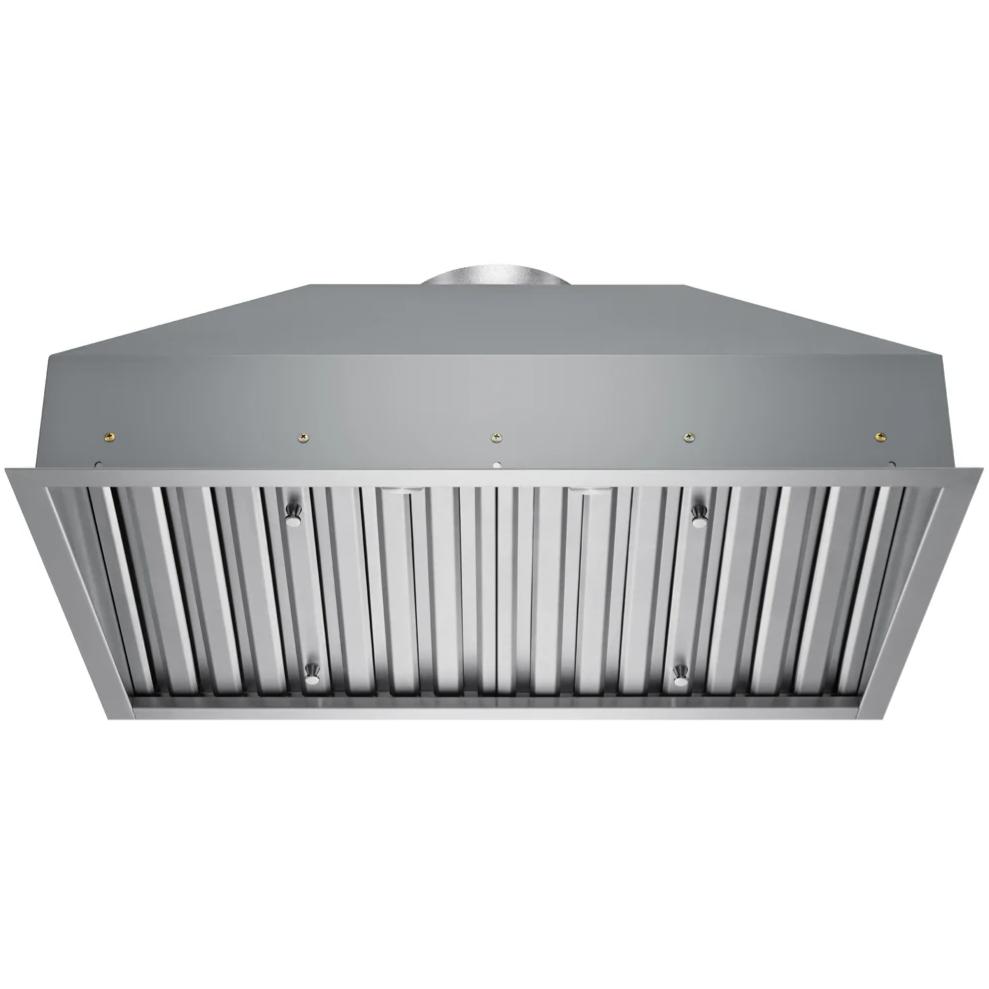

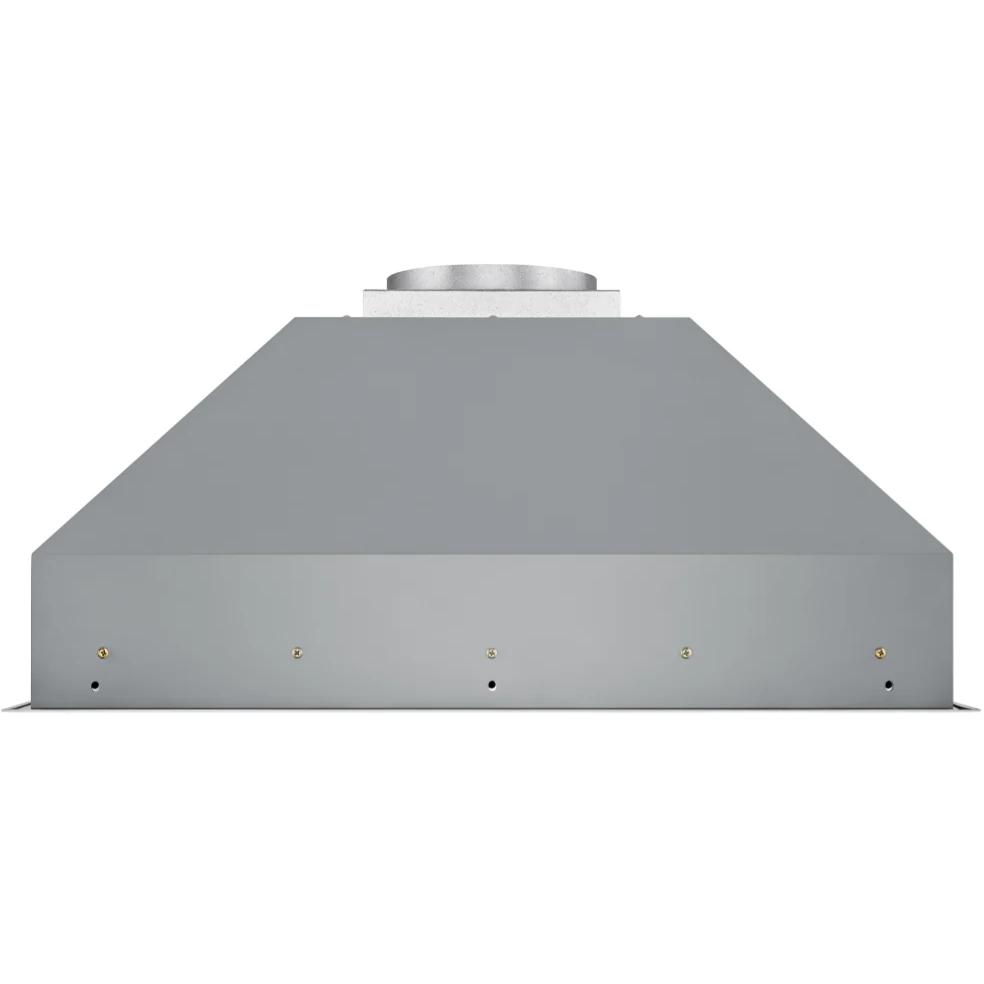

Victory 36-inch Q5 Hood Insert Q5-36

VictorySKU: Q536
Designed and assembled in Canada, this range hood is made with high-quality mechanical switches, an all-metal blower, and stainless steel... Designed and assembled in Canada, this range hood is made with high-quality mechanical switches, an all-metal blower, and stainless steel filters making it efficient, easy to use, and easy to clean.Can be used with a standard 6" round duct or an 8" round duct for better performance and a quieter experience. The incredible 19" depth provides better coverage over your cooktop making this range hood more efficient at removing harmful odors and smoke to prevent your cabinets from discoloring. This range hood is also equipped with warm dimmable LED lights to provide great visibility while cooking. View more
Features Specifications Documents
Features
DISHWASHER SAFE STAINLESS STEEL FILTERS
Discover the Advantages of our Easy-to-Clean, Dishwasher Safe Stainless Steel Filters. Never replace a filter again.
DISHWASHER SAFE STAINLESS STEEL FILTERS
FULLY MECHANICAL
Enjoy Unbeatable Reliability with our Mechanical Rotary Knob Controls. A simpler, less complicated experience.
FULLY MECHANICAL
BRIGHT LED LIGHTING
Discover the long-lasting Brilliance of GU10 Bulbs, Easily Available at any Hardware Store. Illuminate Your World for those Special Moments.
BRIGHT LED LIGHTING
ALL-METAL IMPELLER with LIFETIME Warranty
Reliable Blower with a LIFETIME* Warranty: The Ultimate Choice for Long-lasting Performance. It's true that what's inside matters most.
ALL-METAL IMPELLER with LIFETIME Warranty
Specifications
General
Series Name
Q5
Blower Included
Yes
Airflow
750 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Ducting Information
6" or 8" Round Exhaust
Speeds
4-Speed Mechanical Rotary Switch
Additional Information
• Top Vent (Optional Back Vent for Rear Exhaust)
• Hidden Switch Design
• 1 - 5.5 Sones
• Dimmable LED Lights
• Made with 1mm Stainless Steel
• Dishwasher Safe Stainless Steel Baffle Filters
• Motor Revolution: 800 RPM (±10%) to 1300 RPM (±10%)
• Maximum Airflow: 600 CFM for 6" duct / 750 CFM for 8" duct
• Air Pressure: 150 Pa (200 Pa Maximum)
• Noise Level (sone): 5.0 MAX for 6" duct / 4.0 MAX for 8" duct
• Motor Type: Single Chamber Ultra Quiet
• Fan Type: Centrifugal
• Control Type: Mechanical, Rotary Switches
Electrical Information
Information
• Power Rating: 120V/60Hz (USA & Canada standard)
• General Input Power: 250 W (180W + 2x35W)
• Motor Input Power: 180 W
Dimensions
Class Width
36"
Width
35.25 inch(es) / 89.54 cm
Height
13 inch(es) / 33.02 cm
Depth
19.25 inch(es) / 48.9 cm
Warranty
Warranty
5 Year Parts
Documents
Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
