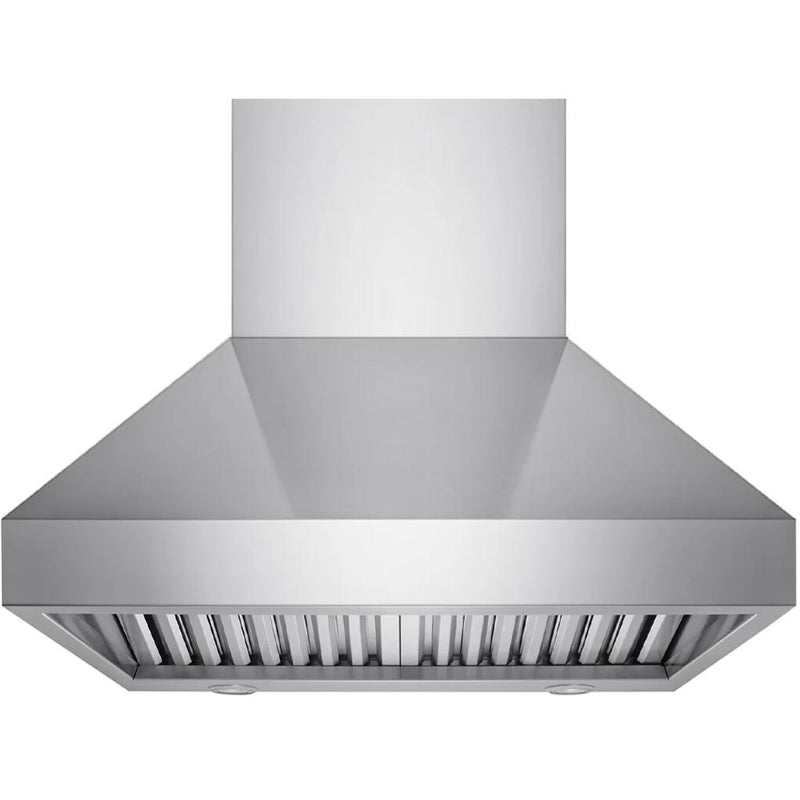

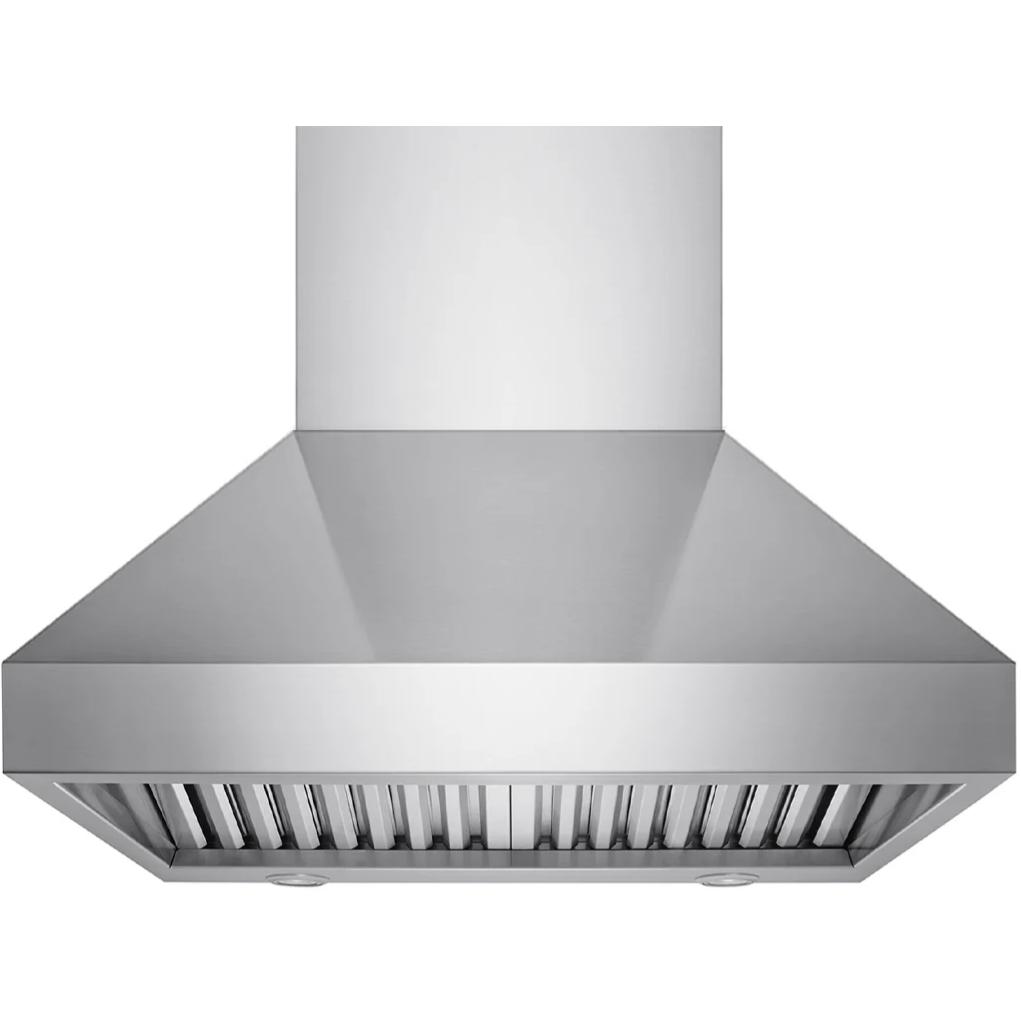

Victory 36-inch Twister Max Wall Mounted Range Hood TWISTERMAX-36

VictorySKU: TWISTERMAX36
The Victory Twister-MAX comes with mechanical rotary switches, making this range one of our most reliable models. Designed, assembled, and... The Victory Twister-MAX comes with mechanical rotary switches, making this range one of our most reliable models. Designed, assembled, and certified in Canada for long-lasting, problem-free service. We offer a 5-year parts warranty on this model.This model can be used with an 8" duct (1000 CFM) or a 10" duct (1200 CFM) for a quieter and more efficient operation. Air discharge direction is top vented but we also offer a back vent option for direct rear exhaust. View more
Features Specifications Documents
Features
ALL-METAL IMPELLER with LIFETIME Warranty
Reliable Blower with a LIFETIME* Warranty: The Ultimate Choice for Long-lasting Performance. It's true that what's inside matters most.
ALL-METAL IMPELLER with LIFETIME Warranty
FULLY MECHANICAL
Enjoy Unbeatable Reliability with our Mechanical Rotary Knob Controls. A simpler, less complicated experience.
FULLY MECHANICAL
BRIGHT LED LIGHTING
Discover the long-lasting Brilliance of GU10 Bulbs, Easily Available at any Hardware Store. Illuminate Your World for those Special Moments.
BRIGHT LED LIGHTING
Specifications
General
Series Name
Twister Max
Blower Included
Yes
Airflow
1200 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Ducting Information
Top or Back 8" or 10" Duct Options
Speeds
4 Speeds
Additional Information
• Motor Revolution: 800 RPM (±10%) to 1300 RPM (±10%)
• Maximum Airflow: 1000 CFM/ 1200 CFM (when 10" duct is used)
• Air Pressure: 150 Pa (200 Pa Maximum)
• Noise Level (sone) Approximately: 1.2 to 6.6 (Lowest to Highest Speed)
• Motor Type: Double Chamber Ultra Quiet ( Metal blades)
• Fan Type: Centrifugal
• Control Type: Rotary Mechanical Switches
• Filtration Type: Stainless Steel Baffle Filters and Grease Tunnel
• Illumination: Dimmable (LED Optional)
Electrical Information
Information
• Power Rating: 120V/60Hz (USA & Canada standard)
• General Input Power: 440 W (300W + 4x35W) or 510W (300W + 6x35W)
• Motor Input Power: 300 W
Dimensions
Class Width
36"
Width
35.5 inch(es) / 90.17 cm
Height
17 inch(es) / 43.18 cm
Depth
24 inch(es) / 60.96 cm
Warranty
Warranty
5 Years Parts
Documents
Installation Guide
Owners Manual
