Features
MTR2303 - Features
• 50 Points of Inspection: Expect a durable, long-standing ventilation solution engineered by the leader in indoor air quality
• 20% More Effective: Trust in the Broan-NuTone brand to more effectively remove pollutants in your kitchen than the leading competitor, with strong airflow at 350 Max Blower CFM
• Up to 44% Quieter: With sound equivalent to a refrigerator running, this vent hood is up to 44% quieter than competition at 1.5 sones on working speed
• One Person Installation: With the included EZ1 brackets it's an easy install for a single person in half the time, both professional and DiYers
• Both ENERGY STAR certified and Title 24 compliant, this kitchen hood is energy efficient and code compliant

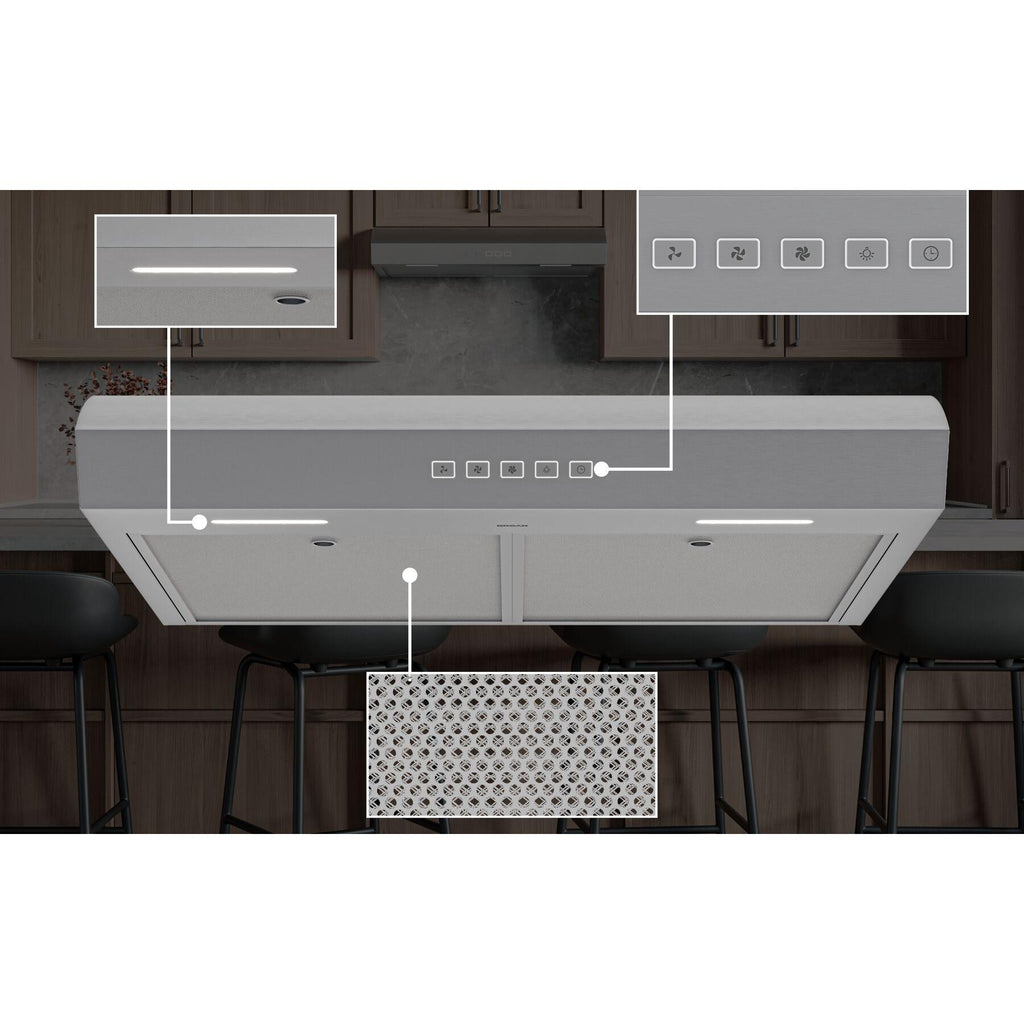

• Bright 2-level, heat resistant LED modules (included) to enhance your cooking experience
• Easy-to-clean, fully enclosed bottom with 2 dishwasher-safe high efficiency micro filters
• The seamless tap-touch controls are backlit and adjust the 3-speed blower and 2 level lighting
• Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)
• Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
• Can be used with optional Universal make-up air damper MD6TU, MD8TU or MD10TU to replace air exhausted out of the house only when the hood is turned ON, helping with ventilation to keep your home fresh while reducing energy consumption
• Can be installed for ADA Compliance with the purchase of model HAWRK5 low voltage wiring and wall switch kit
• 20% More Effective: Trust in the Broan-NuTone brand to more effectively remove pollutants in your kitchen than the leading competitor, with strong airflow at 350 Max Blower CFM
• Up to 44% Quieter: With sound equivalent to a refrigerator running, this vent hood is up to 44% quieter than competition at 1.5 sones on working speed
• One Person Installation: With the included EZ1 brackets it's an easy install for a single person in half the time, both professional and DiYers
• Both ENERGY STAR certified and Title 24 compliant, this kitchen hood is energy efficient and code compliant
• Bright 2-level, heat resistant LED modules (included) to enhance your cooking experience
• Easy-to-clean, fully enclosed bottom with 2 dishwasher-safe high efficiency micro filters
• The seamless tap-touch controls are backlit and adjust the 3-speed blower and 2 level lighting
• Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)
• Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
• Can be used with optional Universal make-up air damper MD6TU, MD8TU or MD10TU to replace air exhausted out of the house only when the hood is turned ON, helping with ventilation to keep your home fresh while reducing energy consumption
• Can be installed for ADA Compliance with the purchase of model HAWRK5 low voltage wiring and wall switch kit
Specifications
General
Series Name
Mantra MTR2
Blower Included
Yes
Airflow
350 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Ducting Information
3.25 x 10-inch;7-inch round
Speeds
3-speed Soft Touch
Additional Information
• Delay Off
• 2-level LED module (included)
• Grease Filters: Micro Mesh (Qty. 2)
• Installation Hardware: EZ1 Bracket
• 2-level LED module (included)
• Grease Filters: Micro Mesh (Qty. 2)
• Installation Hardware: EZ1 Bracket
Electrical Information
Information
• 120 V
• 60 Hz
• 0.8 A
• 60 Hz
• 0.8 A
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
Yes
Information
ADA Compliance
Accessories
Optional
• 7-in. Round Damper: BP87Q
• ADA Wiring Kit: HAWRK5
• Make-up Air Dampers: MD6TU, MD8TU and MD10TU
• Power Cord Kit: HCK44
• ADA Wiring Kit: HAWRK5
• Make-up Air Dampers: MD6TU, MD8TU and MD10TU
• Power Cord Kit: HCK44
Dimensions
Class Width
30"
Width
29.94 inch(es) / 76.04 cm
Height
5.12 inch(es) / 13.01 cm
Depth
20.06 inch(es) / 50.95 cm
Warranty
Warranty
• 1-year
• 3-year (LED modules only)
• 3-year (LED modules only)
